Emergency Bulkhead Light

Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

Product Description

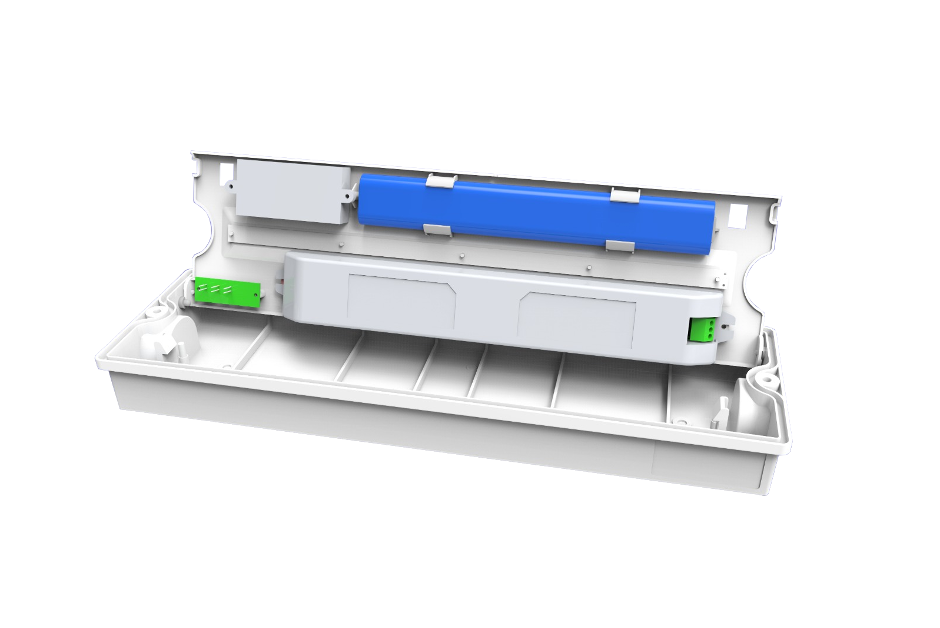

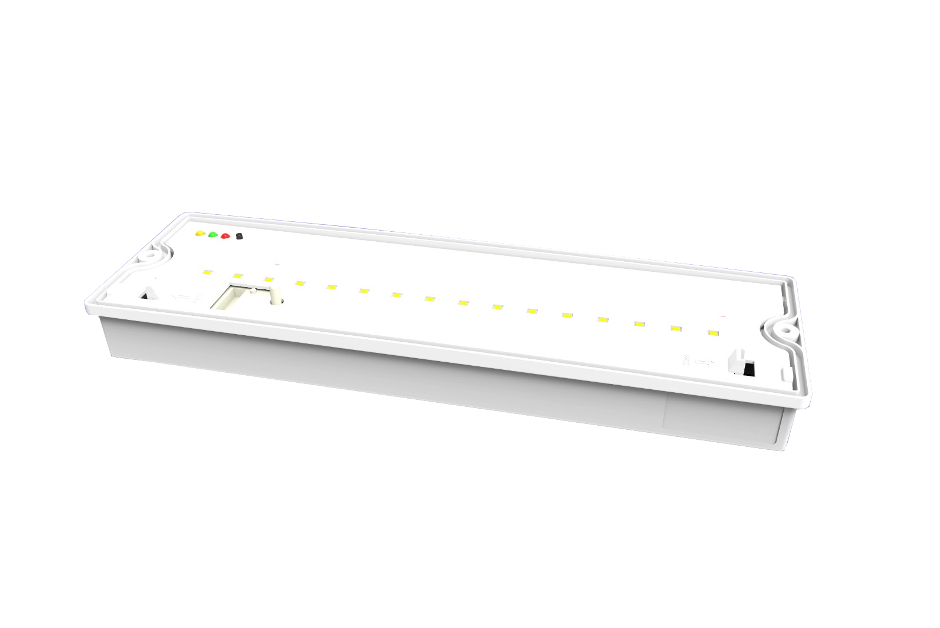

Emergency Bulkhead Lights are surface-mounted safety luminaires used in corridors, staircases, parking areas, and service zones to provide evacuation lighting during power failure.
Model BY-Z2410E offers maintained or emergency-only operation, weather-resistant housing, and wide light distribution suitable for indoor and semi-industrial installations.

This type of emergency lighting is commonly used where durable fixtures and uniform illumination are required.

Engineering Performance and Technology

  • Model Name: BY-Z2410E
  • Input Voltage: AC 120-277V, 50-60Hz
  • Light Source: LED SMD 2835 (50 pcs)
  • Input Power: 8.5 W
  • Emergency Power: 2 W
  • Operation Mode: Maintained / Non-Maintained
  • Emergency Duration: 180 Minutes (3 Hours)
  • Emergency Lumen Output: ≥ 250 lm
  • Battery Type: Ni-Cd 3.6 V 2000 mAh
  • Recharge Time: 24 Hours
  • Battery Life: Up to 4 Years
  • Operating Temperature: 0°C to 40°C
  • IP Rating: IP65
  • Auto Test: No
  • Mounting Type: Surface & Recessed Mounting (Optional)
  • Certifications: CE Approved

Why This Type of Emergency Bulkhead Is Used

  • Suitable for corridors, staircases, and service rooms
  • Durable housing for industrial environments
  • Weather-resistant IP65 protection
  • Flexible operation mode for different safety designs
  • Reliable battery technology for fixed installations

 Typical Applications

  • Staircases
  • Corridors
  • Parking garages
  • Industrial service areas
  • Warehouses
  • Public buildings

FIXING TYPE

  • CEILING RECESSED
  • CEILING SURFACED
  • SEMI RECESSED
  • HANGING WITH CHAIN

LEGEND OPTINS

  • EMERGENCY (ENGLISH & ARABIC)
  • EXIT (ENGLISH & ARABIC)
  • RUNNING DIRECTION WISE
  • CUSTOM MADE

Compliance and Project Suitability

This emergency bulkhead light is suitable for commercial and industrial buildings in Saudi Arabia, where corridor and staircase evacuation lighting must operate under humid or dusty conditions.

What is an emergency bulkhead light?
It is a durable surface-mounted emergency luminaire used for corridor and staircase evacuation lighting.

What is the emergency duration of this model?
About 180 minutes.

Can it operate continuously or emergency-only?
Yes, the operation mode can be selected depending on the wiring.

What battery type is used?
Nickel-cadmium battery 3.6 V 2000 mAh.

Where can it be installed?
In corridors, staircases, parking areas, and industrial service spaces.

Explore more certified emergency lighting solutions from Al Rouf LED designed for commercial and industrial safety applications. For technical support, product recommendations, or project quotations, contact our team to help you select the right emergency lighting system for your project.
