Alrouf Low-Intensity Aircraft Warning Light ARGS-LI (TYPE-B)


Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

The Alrouf ARGS-LI (TYPE-B) is a certified FAA L-810 Low-Intensity Aircraft Warning Light engineered for towers, buildings, and aviation obstacles that require reliable 360° red obstruction lighting. Designed with an aviation-grade aluminum casting and an IP67 fully sealed structure, this beacon delivers long-term performance in extreme environments from −40°C to +70°C.

The system offers steady-burning and flashing modes (20 fpm), low power consumption ≤3W, and a dedicated LED light source with a service life of ≥20 years. With 32.5 cd intensity for Type B and ≥10 cd for Type A, the fixture ensures full regulatory compliance and stable visibility. The built-in photo switch supports automatic day/night operation at 50 Lux, while optional alarm functions and strong lightning and surge protection maximize operational safety for critical infrastructure.

Core Specifications (Technical Data & Dimensions)

  • FAA Classification: L-810
    Model: ARGS-LI (TYPE-B)
  • Electrical Parameters
  • Power Voltage (Optional): AC220V, AC120V, DC12V, DC24V, DC48V
  • Power Supply Frequency: 50Hz ~ 60Hz
  • Power Consumption: ≤ 3W
  • Working Mode: Steady-burning / Flashing (20 times/min)
  • Optical Performance
  • Light Intensity:
  • Type B ≥ 32.5 cd
  • Type A ≥ 10 cd
  • Horizontal Output: 360°
  • Vertical Divergence: ≥ 10°
  • Optional Emitting Color: Red
  • Service Life of Light Source: ≥ 20 years

Dimensions

  • Overall Size: 136mm × 136mm × 220mm
  • Installation Size: 3/4 inch screw installation or chassis installation
  • Weight: 1 KG
  • Environmental Ratings
  • IP Protection: IP67
  • Optically Controlled Ambient Brightness: 50/100 Lux
  • Ambient Temperature: -40°C ~ 70°C
  • Anti-Wind Ability: 120 m/s
  • Lamp Dimensions
  • Without Mounting Base:
  • Height: 220mm
  • Diameter: 136mm

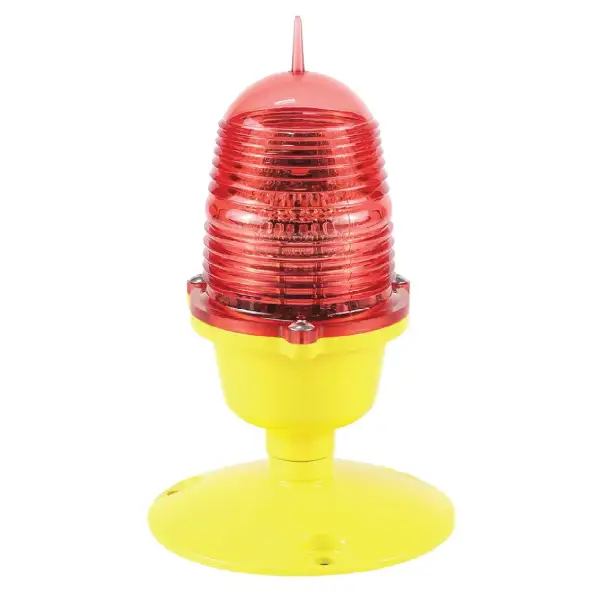

  • With Mounting Base:
  • Height: 260mm
  • Diameter: 145mm
Check out the instructions in which we explain what can be read from these graphs.
Manual

Key Features & Design

  • Base: High-intensity aviation aluminum casting with a fully sealed structure.
  • Lampshade: Made of PC material, corrosion-resistant, UV-resistant, and anti-shock.
  • Light Source: Dedicated LED chip based on independent R&D; ensures low power consumption and long lifespan.
  • Management Circuit: Includes strong lightning protection and surge protection, suitable for extremely harsh working environments.
  • Operation & Control
  • Photo Switch:
  • Turns ON when light intensity is less than 50 Lux
  • Turns OFF when light intensity is above 50 Lux
  • Working Mode Switch: Allows toggling between flashing and steady-burning modes.
  • Automatic Light Control: Automatically adjusts to working mode during rainy conditions or at night.
  • Alarm Function: Optional dry contact alarm can be added.

Safety & Protection

  • Low voltage design with a high degree of safety.
  • Over-current protection and lightning protection.
  • No radio frequency (RF) or electromagnetic interference.
  • Environmental Resistance
  • Highly resistant to impact, lightning, sunlight, and snow.
  • Can withstand typhoons, hail, and severe weather conditions.
