Cleanroom LED Panel

Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

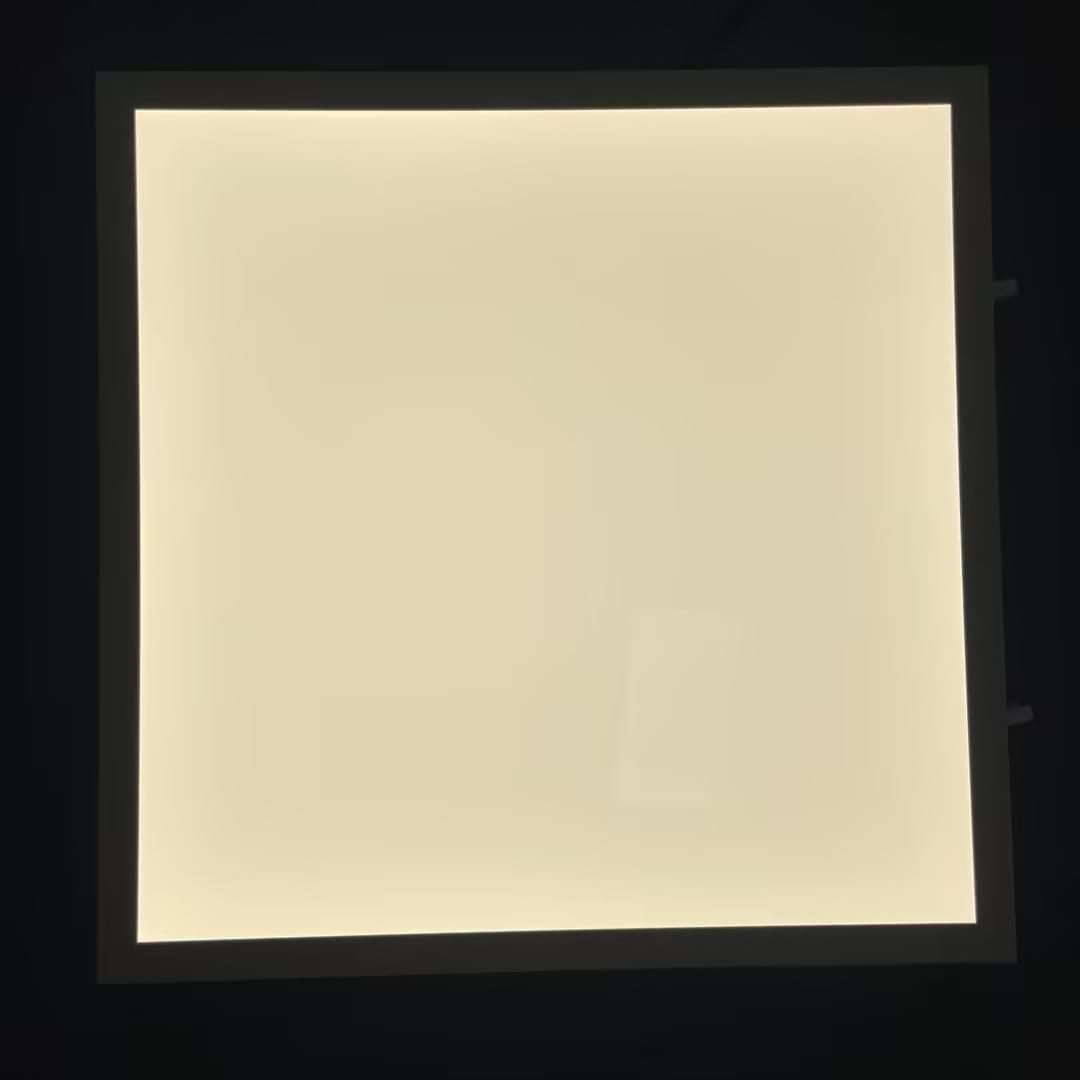

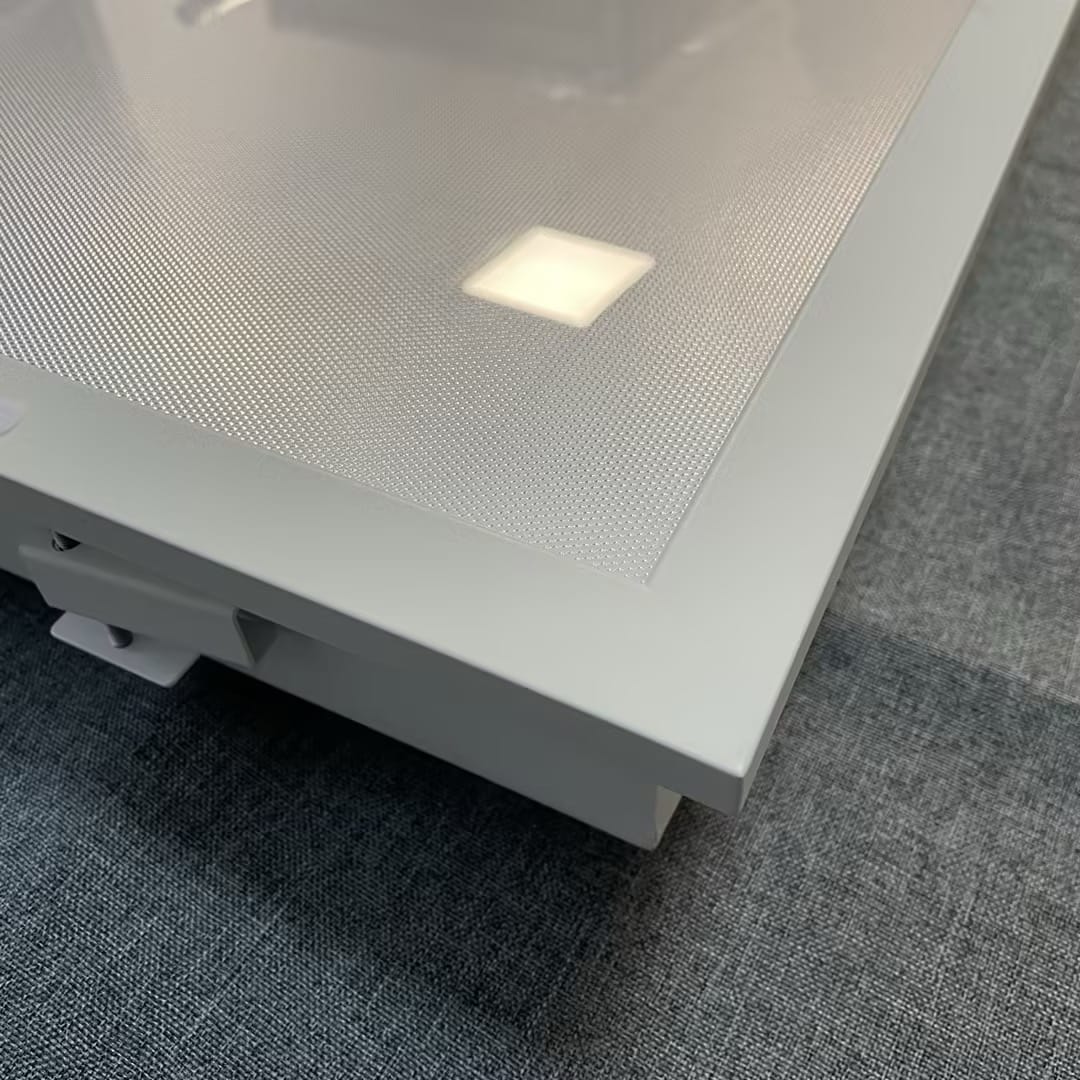

Al Rouf Cleanroom LED Panel is a flicker-free, edge-lit, IP54/IP65-rated LED panel designed for pharmaceutical, hospital, food processing, and laboratory cleanrooms. It meets ISO 14644-1 and GMP lighting requirements with a fully sealed bevel frame, silicon sealing, and PMMA Light Guide Panel that prevents particle accumulation and yellowing. Available in 2x2, 2x4, and 4x4 ft sizes at 30W-72W, with a 5-year warranty and 100,000-hour lifetime. Al Rouf is a Saudi-certified cleanroom LED lighting supplier based in Dammam, supplying across Riyadh, Jeddah, UAE, Kuwait, and the wider GCC.

What is the Al Rouf Cleanroom LED Panel?

It is a flicker-free, edge-lit LED panel with IP54 front and IP65 back protection, available in 2x2, 2x4, and 4x4 ft, 30W-72W, CE and RoHS certified. It meets ISO 14644-1 cleanroom classifications and GMP pharmaceutical lighting standards. Supplied by Al Rouf Lighting Technology, based in Dammam, Saudi Arabia, to clients across the GCC.

Product Variants

Model  Type  Installation
M-C1 Series  Surface Mount  Surface Mounting Installation
BL-C1 Series  Recessed  Recessed Installation



Core Features of product

  • Smooth Surfaces: Sloped or flush designs to prevent dust and particle buildup.
  • Sealed Enclosures: IP65+ ratings to withstand high-pressure washdowns and chemicals.
  • Airflow Support: Aerodynamic "teardrop" shapes to avoid disrupting laminar airflow.
  • Precision Quality: High CRI (80-90+) for accurate color identification during inspection.
  • Electromagnetic Compatibility (EMC): Shielded to prevent interference with sensitive electronic equipment.

Types of Installation:

  • Recessed Troffers: Flush-mounted in ceiling grids for a flat, clean surface.
  • Teardrop Lights: Narrow, rounded fixtures designed to sit under ceiling filters.
  • Surface Mounts: Used when ceiling access is limited or the structure is solid.

Technical Specifications

Parameter  Details
Models  M-C1 (Surface Mount) / BL-C1 (Recessed)
Size  2x2 ft / 2x4 ft / 4x4 ft
Wattage  30W - 72W
CCT  2700K - 6500K
IP Rating - Front  IP54
IP Rating - Back  IP65
Efficiency  100 lm/W / 120 lm/W
Low Glare  UGR < 19 / UGR < 22
Lifespan  > 100,000 hours
Warranty  5 Years
Certifications  CE, RoHS, ISO 9001:2015 QMS, ISO 45001:2018 HSE

Diffuser and Control Options

Diffuser Options

Type  Impact Rating  Best For
PC (Polycarbonate)  IK03  Standard cleanrooms and labs
Anti-virus PC  IK03  Hospitals, pharma, sterile zones
Tempered Glass  IK08  High-impact industrial environments

 Control and Dimming Options

  • 0-10V Dimming
  • DALI
  • Emergency
  • CCT Dimming
  • CCT Switch

 Certifications and Compliance



Certification  Standard
ISO 9001:2015  Quality Management System (QMS)
ISO 45001:2018  Health, Safety and Environment (HSE)
CE  European Conformity
RoHS  Restriction of Hazardous Substances

Application Areas:

  • Pharmaceuticals: Sterile drug production and research labs.
  • Semiconductors: Microchip and wafer fabrication (often requires yellow/amber light).
  • Medical: Hospital operating rooms and diagnostic labs.
  • Food & Beverage: Preventing bacterial growth in processing and packaging zones.
  • Aerospace: Precise assembly of satellites and sensitive optics.

FAQ

What IP rating do I need for cleanroom LED lighting?
IP54 is the minimum for most cleanrooms. IP65 is required for wet zones, sterile pharmaceutical manufacturing, and food processing facilities where high-pressure water cleaning is used.

Is the Al Rouf cleanroom panel GMP compliant?
Yes. Al Rouf Cleanroom LED Panels meet all GMP lighting requirements for pharmaceutical, medical, and ISO-classified manufacturing environments — including sealed construction, flicker-free output, and smooth particle-resistant surfaces.

What sizes are available?
Al Rouf Cleanroom LED Panels are available in 2x2 ft, 2x4 ft, and 4x4 ft to fit all standard cleanroom ceiling grid systems.

What is the warranty on Al Rouf cleanroom LED panels?
Al Rouf provides a 5-year product warranty. The panels are rated for over 100,000 hours of continuous operation.
