Alrouf Helideck Circle & H Lighting ARG-HP/SH

Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

A high-specification LED lighting system for marking the Touchdown Positioning (Circle) and Identification (H) areas on helidecks, fully compliant with CAP437 standards. Designed to eliminate the dangerous “black-hole” effect for pilots, this system features:

  • Robust IP67 aluminum construction
  • Low power consumption of 30W
  • Exceptional lifespan of over 100,000 hours
  • Reliable operation in extreme temperatures from –40°C to +55°C

Specifications & Technical Data :

  • Model: ARG-HP/SH
  • Power Voltage: Supplied from Controller
  • Light Colors:
  • Circle: Yellow
  • H: Green
  • Working Mode: Steady Burning
  • Light Source: LED
  • Light Intensity / Vertical Beam Profile / Colour Chromaticity: As per CAP437
  • Ingress Protection (IP): IP67
  • Compliance: CAP437 (elements provide coverage between 50% and 75% of the circumference as stated in CAP437)
  • Mounting Options: Riveted / Bolted / Glued (External earthing via base plate)
  • Tested Ambient Temperature: –40°C to +55°C
  • Power Consumption: 30 W
  • Life Expectancy: 100,000+ hours

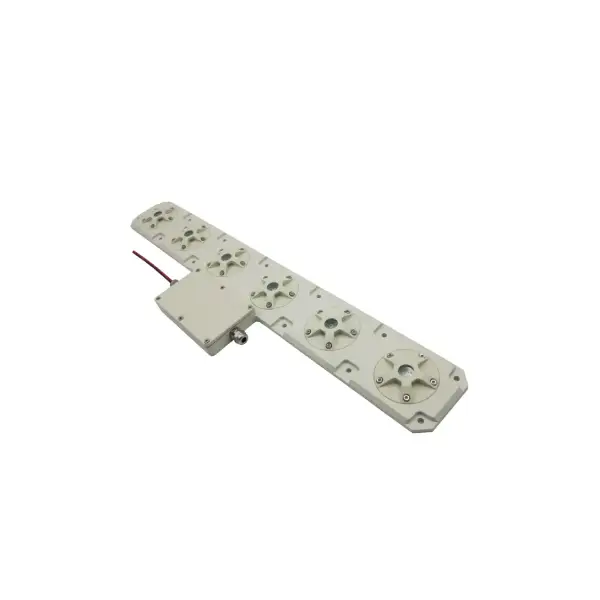

Materials :

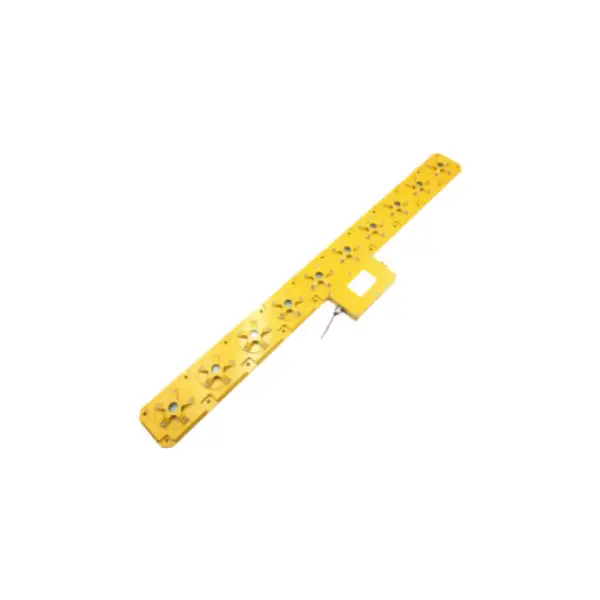

H-Unit: Aluminium with white grip coating
C-Unit: Aluminium with yellow grip coating

No ACF gallery field data found
Check out the instructions in which we explain what can be read from these graphs.
Manual

Design Details :

Circle & H lighting for helideck touchdown positioning marking (TD/PM) and lit heliport identification marking (H), superimposed on the yellow painted marking
Concentric circle composed of at least 16 discrete lighting segments
Each segment width: 100 mm
Segments equidistantly placed with gaps not less than 0.5 m
