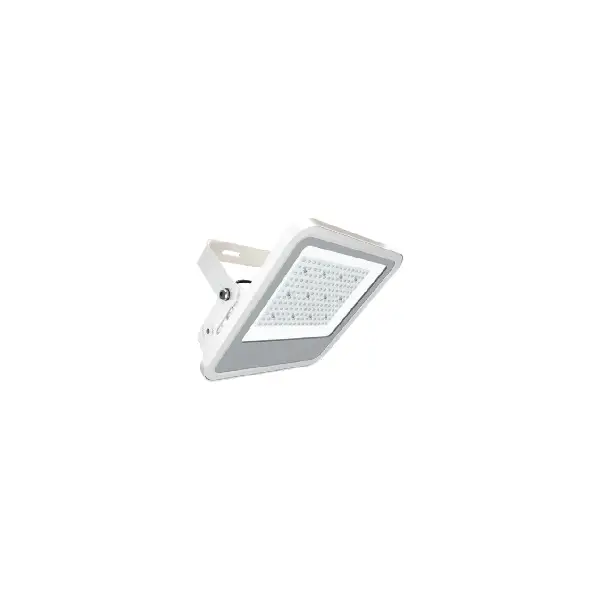

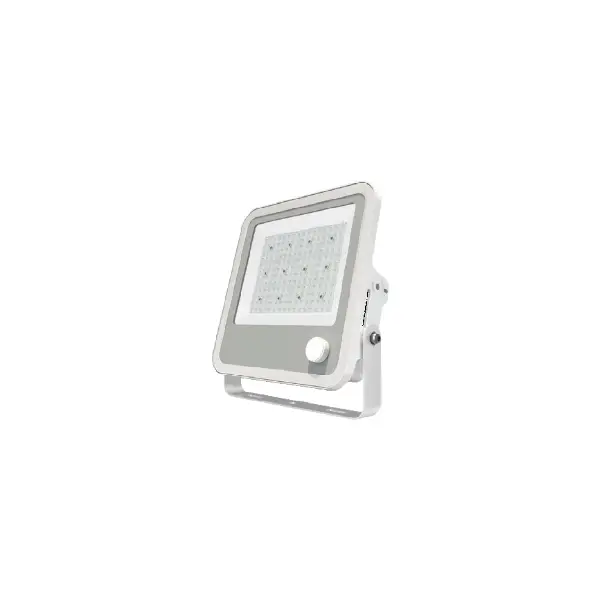

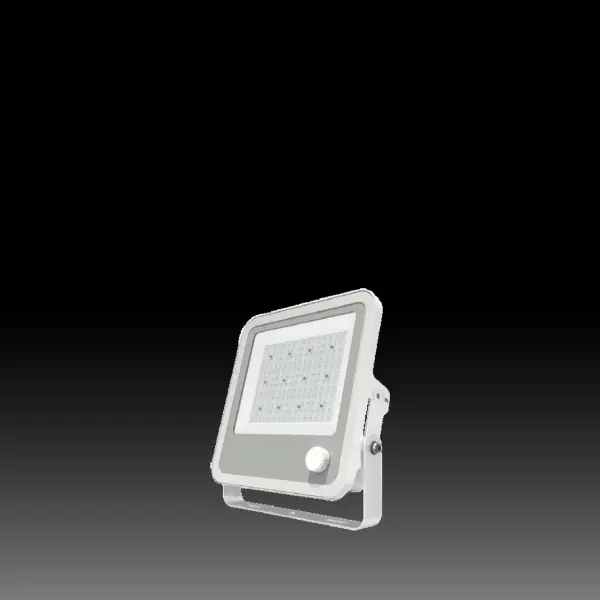

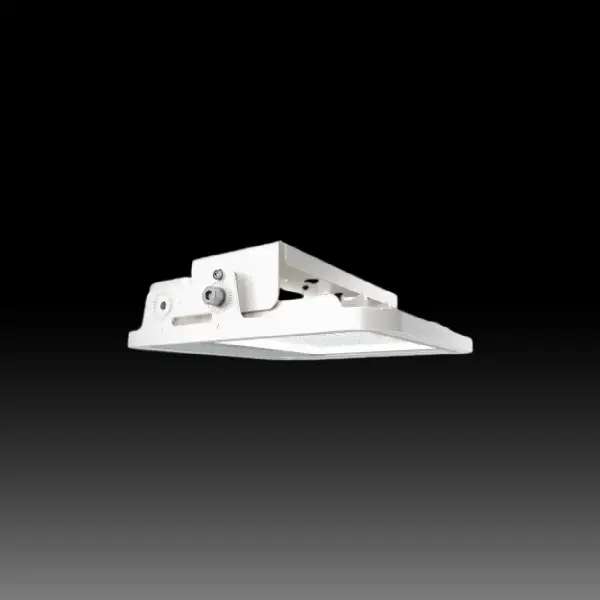

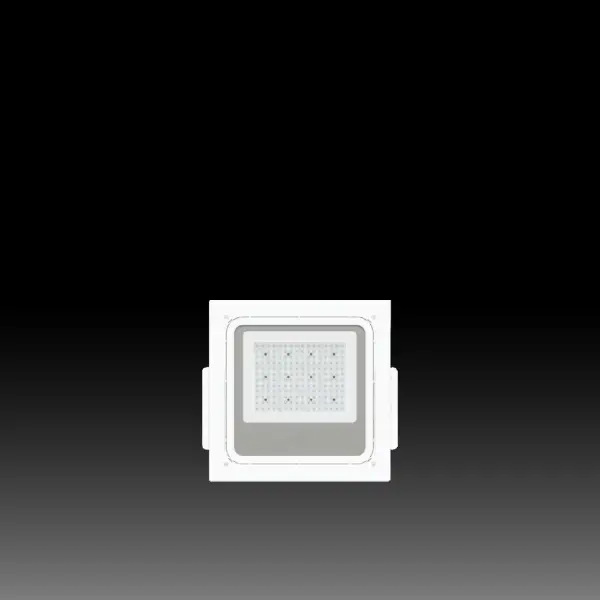

The Alrouf Primo Series LED Canopy Light is the ideal choice for Gas Station Lighting and industrial canopies. Built with a compact die-cast aluminum structure, it offers exceptional performance up to 165 lm/W and a 100,000-hour lifespan. Designed for durability, it features IP66/IK10 protection and integrated 10 KV Surge Protection. This fixture, using Philips LumiLeds chips and Inventronics drivers, offers versatile Surface, Recessed, or Bracket Mounting options, ensuring low maintenance and reliable illumination in harsh environments, backed by a 5-year warranty.
| Electrical Data/th> | ||||
|---|---|---|---|---|
| Model No | ZGSM-GS04-80 | ZGSM-GS04-100 | ZGSM-GS04-120 | ZGSM-GS04-150 |
| Nominal Wattage | 80W | 100W | 120W | 150W |
| Efficiency(±5%) | 165 lm /w | 160 lm /w | 160 lm /w | 155 lm /w |
| Lumen(±5%) | 13200 lm | 16000 lm | 19200 lm | 23250 lm |
| Nominal Voltage | AC 100-240V /277V | 50/60Hz | |||
| LED | Philips Lumileds | |||
| Driver | Inventronics (Default) / Other brands on request | |||
| Power Factor (PF) | >0.95 | |||
| THD | <15 | |||
| SPD | 10KV (Built-in Driver) / Extra 10KV SPD (Available on request) | |||
| Optics | 60°, 90°, or 120° | |||
| Standard Deviation of Color Matching | <5 SDCM | |||
| CRI | Ra>70 (Default) / Ra>80 | |||
| CCT | 3000K, 4000K, 5000K, 5700K | |||
| General Data | |
|---|---|
| Body Material | High pressure die-cast aluminum |
| Housing Color | White |
| Cover Material | Tempered glass |
| Lens Material | UV-resistant Polycarbonate |
| Working Environment | -40°C ~ +50°C, 10%～90%RH |
| Lifespan L70 at 25°C | >100,000 h |
| Mounting Type | Surface mounting / Recessed mounting / Bracket mounting |
| Mounting Location | Wall / Ceiling |
| Dimmable | 1-10V Dimming (Default) / Timer Dimming |
| Protection Class | Class I (Default) / Class II |
| Standards | CE, RoHS, CB, LM79, LM80, TM-21, ATEX, IP66, IK10 |
| Available on request | Motion sensor, NTC, OLC, DALI Dimming |
