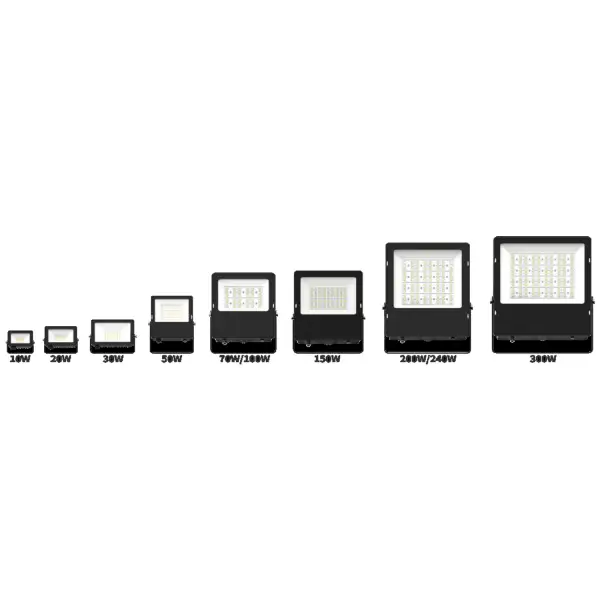

Alrouf Led Flood Light T137 Series
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.
Features
- Fin-type heat sink, good heat dissipation to ensure long life span.
- High efficiency up to 150lm/W to save energy.
- Safe and durable tempered glass, woven tempered glass optional to reduce glaring.
- IP66 high protection grade.
- Power range from 10W-300W with various beam angle available, workable in different applications.
Check out the instructions in which we explain what can be read from these graphs.
Manual
| Model No. With Driver |
3712-70W |
3712-100W |
3712-150W |
3712-200W |
3712-240W |
3712-300W |
| Power |
70W |
100W |
150W |
200W |
240W |
300W |
| Product Dimension |
332x272x60(mm) |
332x272x60(mm) |
36x292x60(mm) |
460x354x60(mm) |
460x354x60(mm) |
485x412x65(mm) |
| Effciency |
140±10lm/W ( 30°/ 60°/ 90°/ TYPE2 TYPE3 ) |
| Luminous Flux (±10%) |
9800±700lm |
14000±1000lm |
21000±1500lm |
28000±2000lm |
33600±2400lm |
42000±3000lm |
| LED Quantity |
224 PCS SMD 2835 |
224 PCS SMD 2835 |
336 PCS SMD 2835 |
532 PCS SMD 2835 |
532 PCS SMD 2835 |
672 PCS SMD 2835 |
| High Effciency |
150±10lm/W (120° ) |
| Luminous Flux (±10%) |
10500±700lm |
15000±1000lm |
22500±1500lm |
30000±2000lm |
36000±2400lm |
45000±3000lm |
| LED Quantity |
224 PCS SMD 2835 |
224 PCS SMD 2835 |
336 PCS SMD 2835 |
532 PCS SMD 2835 |
532 PCS SMD 2835 |
672 PCS SMD 2835 |
| CCT |
3000K;4000K;5000K;6500K |
| Ingress Protection |
IP66 |
| Color Rendering Index |
Ra>80 |
| Beam Angle |
120°/30°/60°/90°/TYPE2/ TYPE3 |
| Driver Brand |
TOMCARLINE |
| Input Voltage |
AC120-277V |
| Power Factor |
0.95 |
| Frequency |
47-63HZ |
| Surge Protection |
6KV/10KV |
| Driver Type |
Constant Current (CC) |
| Luminaire Net Weight |
2.5kg |
2.5kg |
3.6kg |
5.7kg |
5.7kg |
7.7kg |
| Packing Information |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
1pcs |
| Export Carton Size |
36.8*31*13cm |
36.8*31*13cm |
38.6*33.7*13cm |
49.5*39.2*13cm |
49.5*39.2*13cm |
52.2*44.8*13.5cm |
| Gross Weight |
2.9kg |
2.9kg |
4.1kg |
6.3kg |
6.3kg |
8.4kg |
| Material |
Housing Packing |
Aluminum alloy |
| Optics |
Clear tempered glass/ Clear tempered glass+PC lens |
| Finish |
Powder coating |
| Fixture Color |
Black |
| Mounting Option |
Wall mounting / Slip fitter pole installation |
| Storage Temperature Range |
-30 - +70°C |
| Storage Humidity Range |
85% max. |
| Operating Temperature Range |
-40~+45°C |
| Operating Humidity Range |
85% max. |
| Life Time |
50.000 hours |
| Warranty |
5 Years |
| Dimmable |
1-10V Dimmable, DALI Dimmbale |
| Optional |
1-10V/DALI driver |
| Woven tempered glass (MOQ 200pcs) |
| Motion sensor & Daylight sensor |
| Slip fitter for street light or billboard lighting (60/42mm or 76mm) |
| 10KV/20KV SPD |
| Metal breathing valve |
| Model No. |
3712-10W |
3712-20W |
3712-30W |
3712-50W |
| Power |
10W |
20W |
30W |
50W |
| Product Dimension |
113x73x32(mm) |
142x92x32(mm) |
190x121x32(mm) |
196x188x34(mm) |
| CCT |
110±10lm/W |
| Ingress Protection |
IP66 |
| Color Rendering Index |
Ra>80 |
| Beam Angle |
120° |
| Driver Brand |
TOMCARLINE |
| Input Voltage |
AC220-240V |
| Power Factor |
0.95 |
| Frequency |
47-63HZ |
| Surge Protection |
2KV/2KV |
| Driver Type |
DOB |
| Luminaire Net Weight |
0.2 kg |
0.3 kg |
0.5 kg |
0.9 kg |
| Packing Information |
48 pcs |
26 pcs |
24pcs |
16 pcs |
| Export Carton Size |
43.6*26.9*24cm |
44.6*31.9*13.5cm |
43.6*31.1*21.6cm |
42.2*23.3*20.8cm |
| Gross Weight |
12.7 kg |
8.8 kg |
15.2 kg |
15.5 kg |
| Material |
Housing Packing |
Aluminum alloy |
| Optics |
Clear tempered glass/ Clear tempered glass+PC lens |
| Finish |
Powder coating |
| Fixture Color |
Black |
| Mounting Option |
Mounting Option |
| Storage Temperature Range |
-30 - +70°C |
| Storage Humidity Range |
85% max. |
| Operating Temperature Range |
-40~+45°C |
| Operating Humidity Range |
85% max. |
| Life Time |
50.000 hours |
| Warranty |
5 Year |
