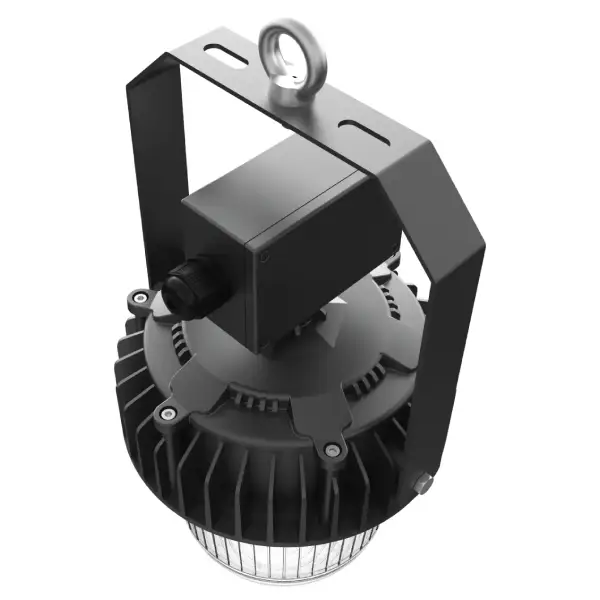

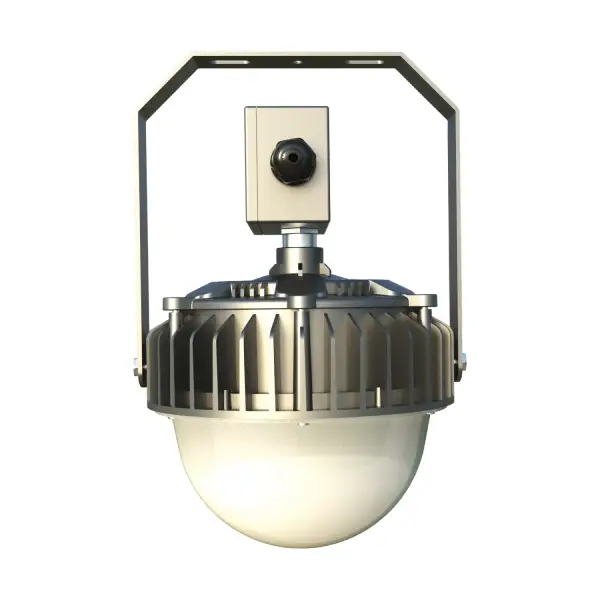

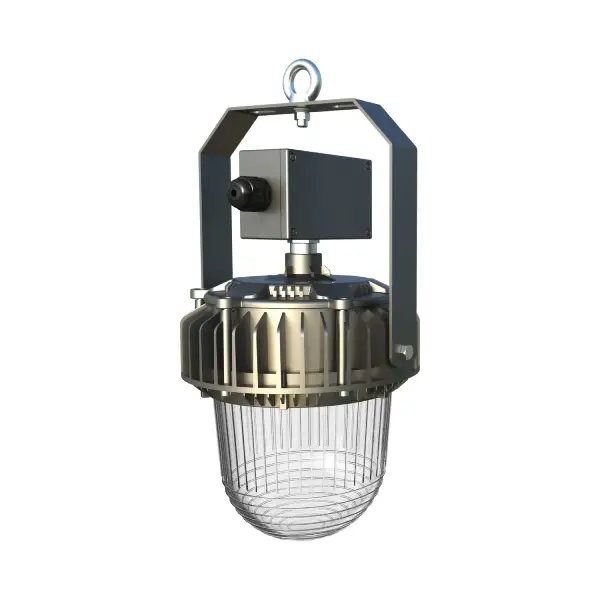

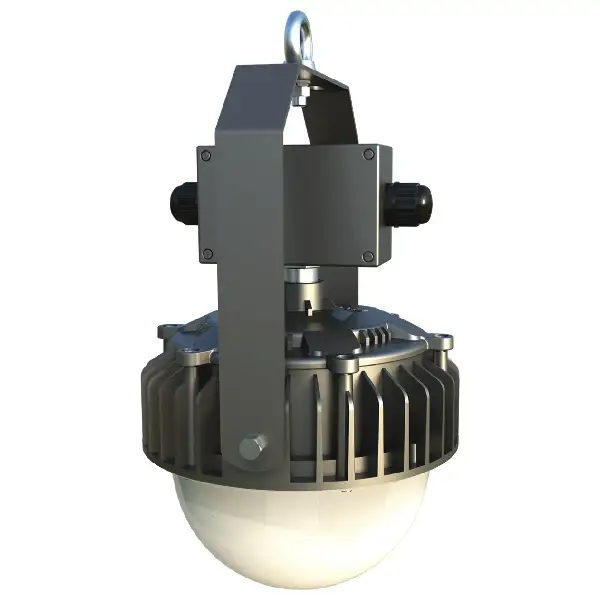

Alrouf Well Glass Luminare
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.
Performance
- Philips Lumileds
- 36W
- 3000K, 4000K, 5000K, 5700K, 6500K
- ≥70
- L70>100,000hours
- AC 100~277V
- 0.95 min
- IP66
- IK10
- 120°(PC) / 120°(Tempered Glass)
- Corrosive-resistant polyester powder coat finish
- Operating Temperature:-30°C to +55°C (-22°F to 131°F)
- Storing Temperature:-45°C to +80°C (-49°F to 176°F)
- Sosen / Inventronics
- 130lm/W
Hanging Ring Mount
- Tighten the NUT attached to the hanging ring to ensure the hanging ring is securely connected to the light fixture.
- Hang the ring to the field supplied by the mounting hook or chain.
- Wiring.(Connect supply wires to luminaire wire leads per the wiring diagram using methods that comply with all applicable codes.)
No ACF gallery field data found
Check out the instructions in which we explain what can be read from these graphs.
Manual
| Specifications |
| Model |
Power |
Efficacy(IES) |
Total Lumen |
N.W |
Product Dimensions |
| EO-VIC-36 |
36W |
130lm/w |
4,680lm |
4.0kg/8.8lbs |
405x227x227mm (15.9x8.9x8.9in) |
| EO-VIC-36 PC |
36W |
130lm/w |
4,680lm |
3.85kg/8.5lbs |
365x227x227mm (14.4x8.9x8.9in) |
