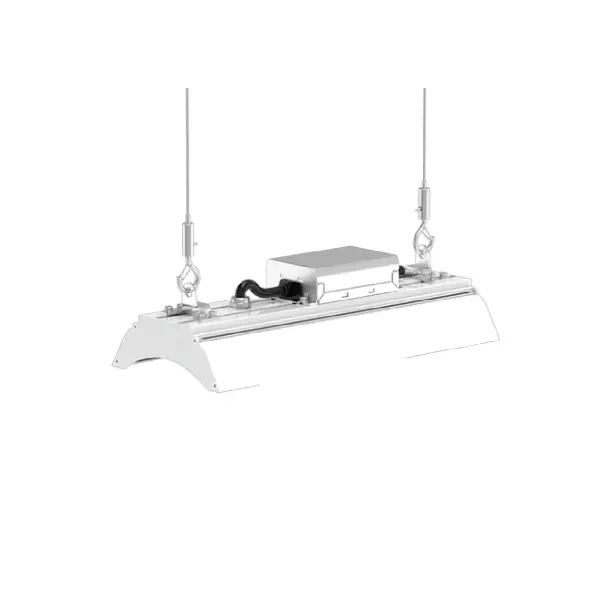

Alrouf High Temperature Linear Light With Pendant Surface Wall Fixing Options

Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.


  • Power Consumption: 50-200W
  • Luminous Flux: 7000lm to 28,000lm
  • Input Voltage: 85 ~277V
  • Color Temperature: 2700 - 6500K
  • IP and IK Rating: IP65 and IK08
  • Colour Rendering Index (Ra): 80+
  • L70 lumen maintenance: >50, 000 hours
  • Power factor: >0.95
  • Warranty: 5 years
  • Operation Temperature Range: -30 to 65 Deg C
Check out the instructions in which we explain what can be read from these graphs.


Part No Power CCT Flux Dimming Diameter Height Beam Angle
ISL-XTD-A50W 50W 2700-6500K 700lm Optional 305mm 77mm 60/90/120/80*150/90*120
ISL-XTD-A100W 100W 2700-6500K 1400lm Optional 605mm 83mm 60/90/120/80*150/90*120
ISL-XTD-A150W 150W 2700-6500K 2100lm Optional 905mm 83mm 60/90/120/80*150/90*120
ISL-XTD-A200W 200W 2700-6500K 2800lm Optional 1205mm 83mm 60/90/120/80*150/90*120


Model Carton Size N.W (Net Weight) G.W (Gross Weight) Qty (Quantity)
ISL-XTD-A50W 320*180*130mm 1.3KG 1.6KG 1PCS
ISL-XTD-A100W 650*180*140mm 2.2KG 2.6KG 1PCS
ISL-XTD-A150W 950*180*140mm 3KG 3.6KG 1PCS
ISL-XTD-A200W 1250*180*1400mm 3.5KG 4.5KG 1PCS
