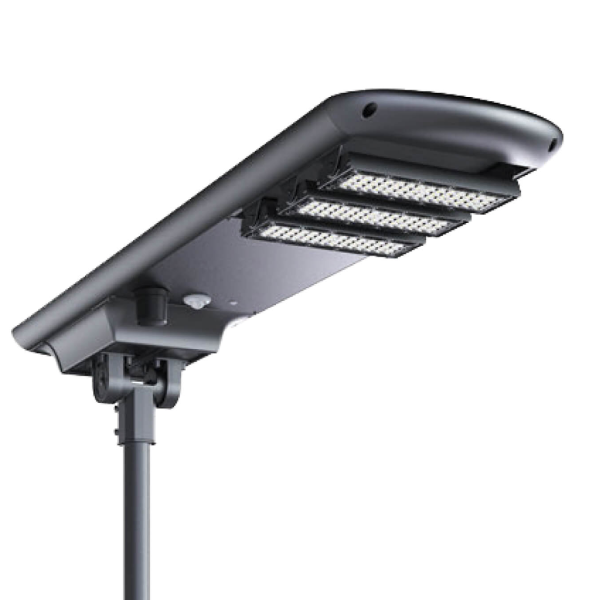

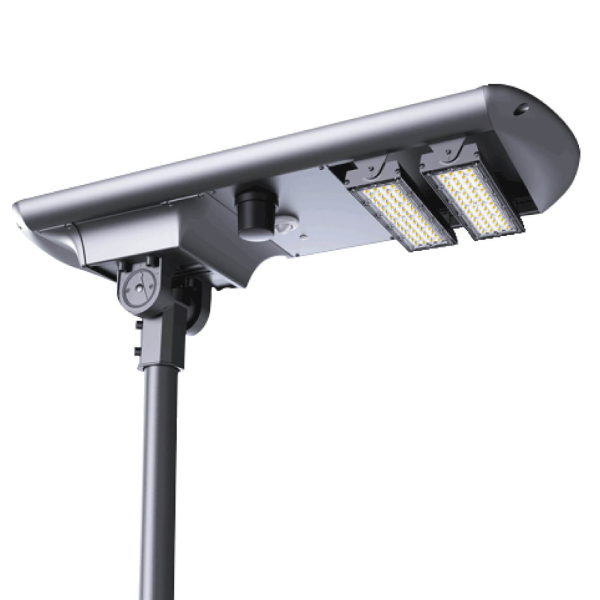

Alrouf Triton Series Integrated Solar Street Light
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.
Installation
Product Features
- High luminous efficiency of 195lm/W to maximize battery performance.
- Environment friendly - 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution.
- Off-grid roadway lighting made electric bill-free.
- Self-contained solution - Light on/off controlled by automatic daylight sensing.
- IP66 Luminaire ensures long-lasting and consistent high performance.
- No trenching or cabling work is needed.
- Easy to install and maintain.
- Five Years Warranty.
Nothing to Say?
Check out the instructions in which we explain what we
manualPerformance
- 30W~150W
- 195lm/W
- Philips Lumileds
- PIR & Timer Dimming
- MPPT Controller
- 5000K (2500~6500K optional)
- 60×100° / 70×135° / 75×150° / 80×150° / 110° / 150
- IP66
- IK08
- Monocrystalline silicon photovoltaic panels
- LiFeP04 battery
- Slip fitter
- Operating Temperature: -30°C to +50°C (-22°F to 122°F)
- Storing Temperature: -40°C to +80°C (-40°F to 176°F)
Applications
- Street Lighting
- Roadway Lighting
- Pathway Lighting
- Ramp Lighting
- Sidewalk Lighting
- Private Road Lighting
- Farm Lighting
- Wildlife Area Lighting
- Perimeter Security Lighting
- Park Lighting
- Railway Yard Lighting
- Fence Lighting
- Campus Lighting
- Ship Dock Lighting
- Remote Area Lighting
- Military Base Lighting
- Gate Lighting
- Jogging Path Lighting
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.
Installation
Product Features
- High luminous efficiency of 195lm/W to maximize battery performance.
- Environment friendly - 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution.
- Off-grid roadway lighting made electric bill-free.
- Self-contained solution - Light on/off controlled by automatic daylight sensing.
- IP66 Luminaire ensures long-lasting and consistent high performance.
- No trenching or cabling work is needed.
- Easy to install and maintain.
- Five Years Warranty.
Nothing to Say?
Check out the instructions in which we explain what we
manualPerformance
- 30W~150W
- 195lm/W
- Philips Lumileds
- PIR & Timer Dimming
- MPPT Controller
- 5000K (2500~6500K optional)
- 60×100° / 70×135° / 75×150° / 80×150° / 110° / 150
- IP66
- IK08
- Monocrystalline silicon photovoltaic panels
- LiFeP04 battery
- Slip fitter
- Operating Temperature: -30°C to +50°C (-22°F to 122°F)
- Storing Temperature: -40°C to +80°C (-40°F to 176°F)
Applications
- Street Lighting
- Roadway Lighting
- Pathway Lighting
- Ramp Lighting
- Sidewalk Lighting
- Private Road Lighting
- Farm Lighting
- Wildlife Area Lighting
- Perimeter Security Lighting
- Park Lighting
- Railway Yard Lighting
- Fence Lighting
- Campus Lighting
- Ship Dock Lighting
- Remote Area Lighting
- Military Base Lighting
- Gate Lighting
- Jogging Path Lighting
Product Data
| Part# |
Power |
Solar Panel |
Battery |
Efficacy (IES) |
Total Lumen |
Product Dimensions |
| EL-TST-30 |
30W |
60W/18V |
12.8V/24AH |
195 lm/W |
5,850lm |
950x405x270mm |
| EL-TST-40 |
40W |
60W/18V |
12.8V/30AH |
195 lm/W |
7,800lm |
950x405x270mm |
| EL-TST-50 |
50W |
70W/18V |
12.8V/30AH |
195 lm/W |
9,750lm |
1050x405x270mm |
| EL-TST-60 |
60W |
70W/18V |
12.8V/36AH |
195 lm/W |
11,700lm |
1050x405x270mm |
| EL-TST-80 |
80W |
80W/36V |
25.6V/24AH |
195 lm/W |
15,600lm |
1250x405x270mm |
| EL-TST-90 |
90W |
100W/36V |
25.6V/30AH |
195 lm/W |
17,550lm |
1550x405x270mm |
| EL-TST-120 |
120W |
120W/36V |
25.6V/42AH |
195 lm/W |
23,400lm |
1250x855x270mm

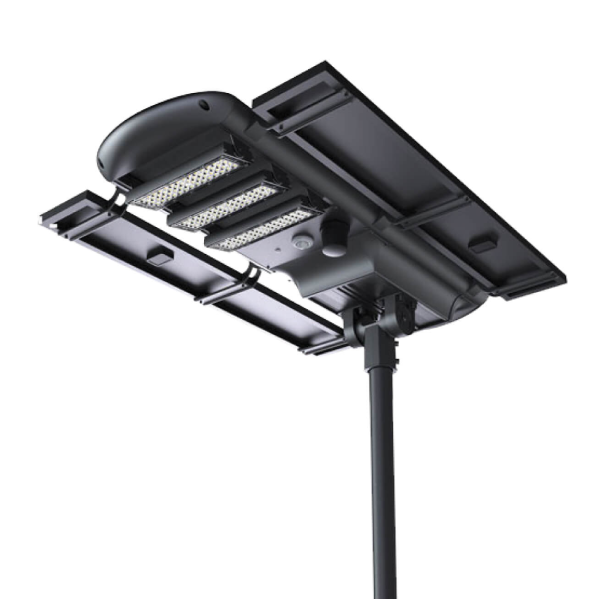

(Extendable Solar Panel) |
| EL-TST-150 |
150W |
150W/36V |
25.6V/48AH |
195 lm/W |
29,250lm |
1550x855x270mm
(Extendable Solar Panel) |
