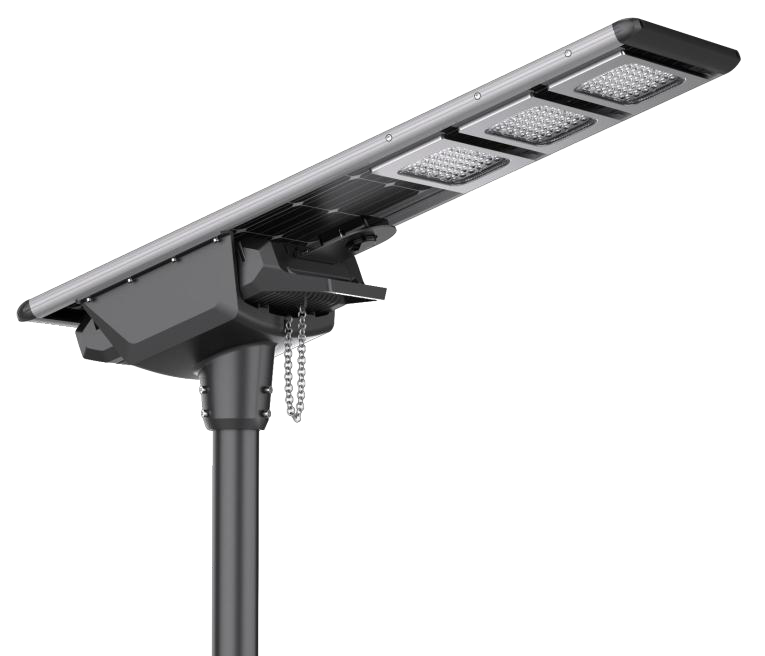

The Alrouf QH Series is an integrated solar LED street light designed for roads, industrial sites and remote locations without dependable access to electricity. Available from 60W to 250W, the series delivers up to 47,500 lumens with smart lighting controls, IP66 protection and up to 12 hours of programmed illumination per night.

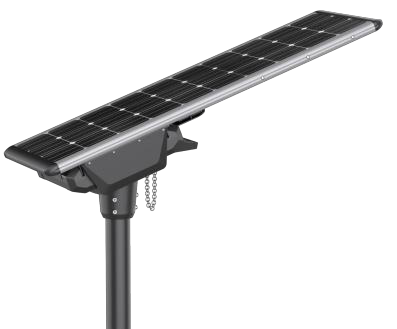

The QH Series is an all-in-one solar street lighting system that combines LED modules, a monocrystalline solar panel, a LiFePO4 battery and an intelligent controller within one coordinated platform.
During the day, the solar panel converts sunlight into electrical energy and stores it in the battery. At night, the controller uses this stored energy to operate the LED modules according to a programmed timer, microwave motion sensor or mixed lighting mode.
This integrated design reduces dependence on conventional electrical infrastructure, making the QH Series suitable for new developments, remote areas and projects where grid connection is unavailable, unreliable or costly.
The QH Series provides a combination of high-output lighting, intelligent energy management and outdoor protection.
Key features include:
The QH Series includes seven integrated solar LED street light configurations. Each model is designed for different road dimensions, installation heights and lighting requirements.
| Model | Power | Luminous Flux | Solar Panel | Battery | Installation Height | Suggested Spacing |
|---|---|---|---|---|---|---|
| ARLX-LD60W-QH | 60W | 11,400 lm | 18V 80W | DC12.8V 30Ah | 6–8 m | 20–25 m |
| ARLX-LD80W-QH | 80W | 15,200 lm | 18V 100W | DC12.8V 45Ah | 8–9 m | 25–30 m |
| ARLX-LD100W-QH | 100W | 19,000 lm | 18V 130W | DC12.8V 45Ah | 9–10 m | 30–35 m |
| ARLX-LD120W-QH | 120W | 22,800 lm | 18V 140W | DC12.8V 60Ah | 10–11 m | 35–40 m |
| ARLX-LD150W-QH | 150W | 28,500 lm | 18V 150W | DC12.8V 75Ah | 10–12 m | 35–40 m |
| ARLX-LD200W-QH | 200W | 38,000 lm | 36V 200W | DC25.6V 45Ah | 10–12 m | 35–40 m |
| ARLX-LD250W-QH | 250W | 47,500 lm | 36V 250W | DC25.6V 60Ah | 10–12 m | 35–40 m |
The solar panel charges the LiFePO4 battery during daylight hours. The stored energy is then managed by the controller to operate the LED modules at night.
The catalogue states:
Actual charging time, operating duration and autonomy depend on solar radiation, geographical location, seasonal weather, panel orientation, shading, selected lighting profile and battery condition.
A solar-energy calculation should therefore be completed for the project location before the final system is specified.
All QH Series models use a common optical platform designed for outdoor road and area lighting.
Optical specifications include:
The adjustable LED module allows the luminaire position to be refined according to the road layout and lighting design. Final photometric performance should be verified using the model’s photometric file and a project-specific lighting calculation.
The QH Series is designed for outdoor locations that require independent or off-grid illumination.
Suitable applications include:
Suitability must be confirmed according to the required lighting level, site conditions, solar availability and applicable project standards.
An integrated solar LED street light combines the solar panel, LED modules, lithium battery and intelligent controller into one coordinated lighting system. It charges during the day and uses the stored solar energy to provide programmed illumination at night.
The QH Series is available in 60W, 80W, 100W, 120W, 150W, 200W and 250W configurations. The available luminous output ranges from 11,400 to 47,500 lumens.
The QH Series is designed to provide up to 12 hours of lighting per night. The actual operating duration depends on the selected control profile, battery charge, solar conditions and project configuration.
The stated charging time is approximately 6–8 hours under suitable sunlight. Actual charging time depends on solar radiation, panel orientation, shading, weather and geographical location.
According to the product catalogue, the system can support approximately 5–7 cloudy or rainy days. Actual autonomy depends on the selected model, battery condition, lighting program and available solar energy.
Yes. The QH Series includes microwave-sensor control. The system can increase output when movement is detected and reduce the lighting level after a programmed period without activity.
Recommended installation heights range from 6–8 metres for the 60W model to 10–12 metres for the higher-output models. A lighting calculation should determine the final height and pole spacing.
The catalogue states that QH Series luminaires carry IP66 ingress protection and IK09 impact resistance, making them suitable for demanding outdoor environments.
The available colour temperatures are 3000K, 4000K, 5000K and 6500K, subject to project requirements and product availability.
The correct wattage depends on the road width, required illuminance, pole height, pole spacing, operating schedule and local solar radiation. Wattage alone should not be used to select a street light; a project-specific lighting and solar assessment is recommended.
The QH Series can be used for roads, industrial sites, compounds, parking areas, pathways, public spaces and remote locations where conventional electrical infrastructure is unavailable or impractical.
Send Alrouf the project location, required quantity, site dimensions, pole height, required lighting level and applicable specifications. The technical team can then recommend a model and prepare a technical and commercial quotation.
