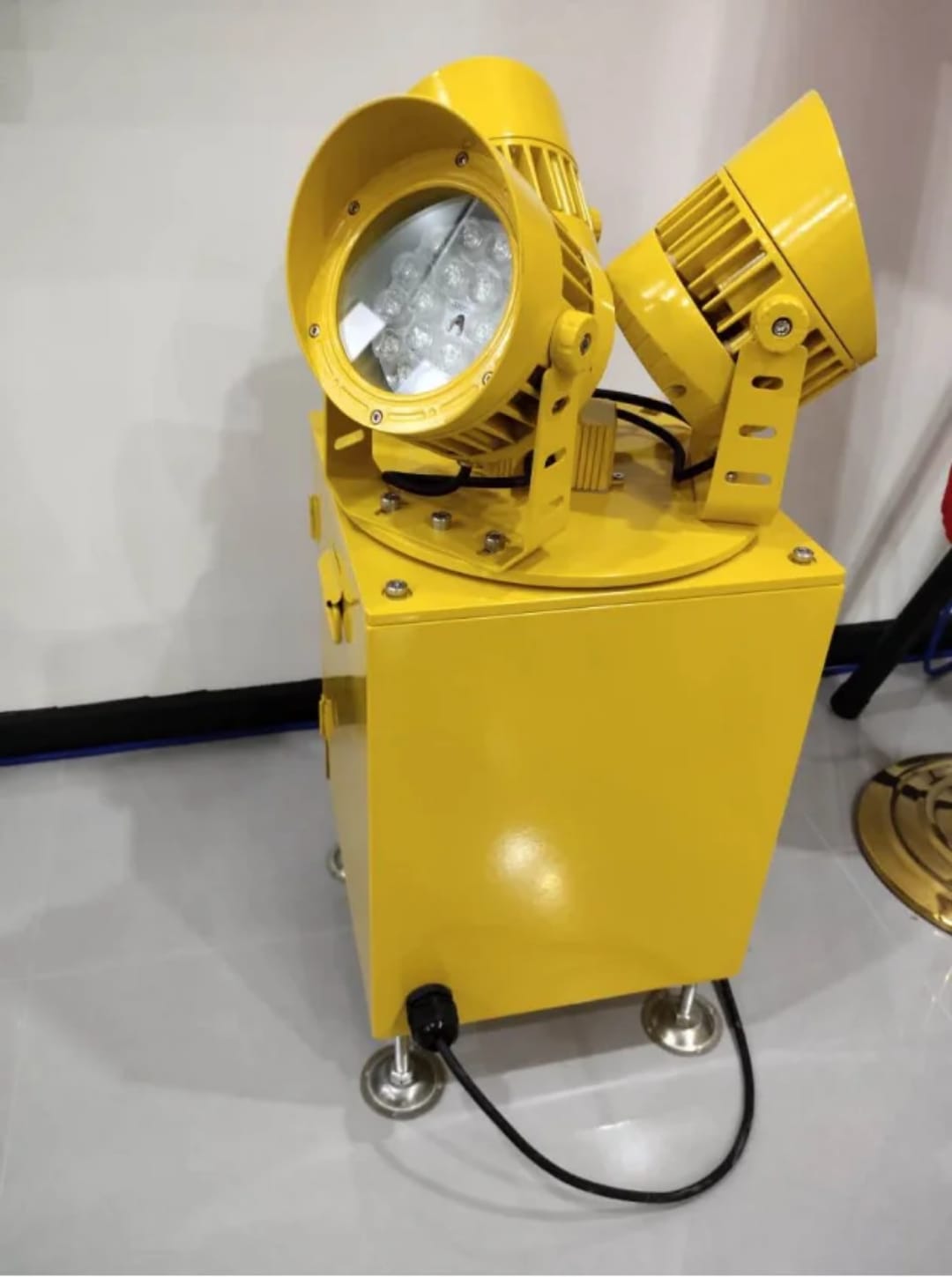

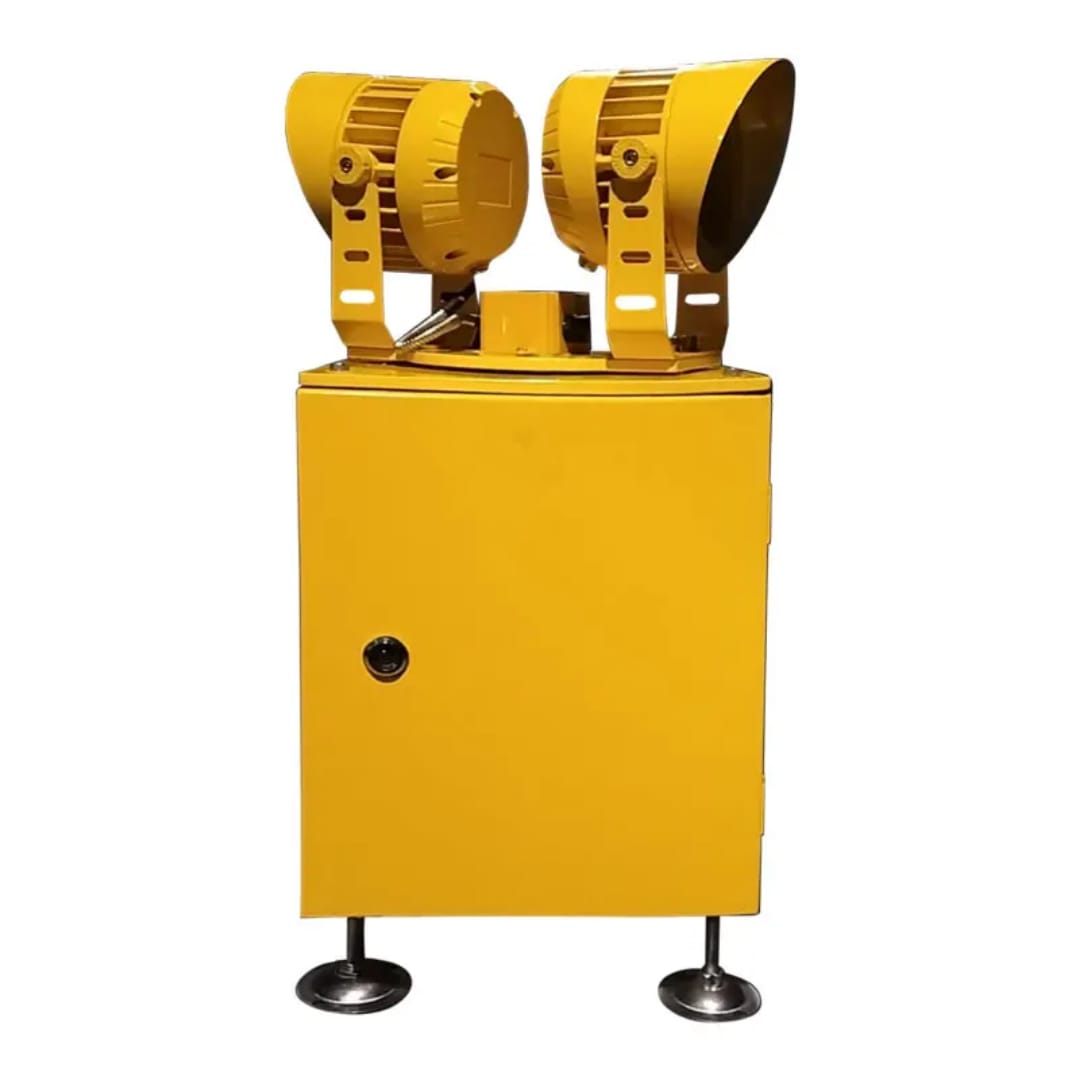

Heliport Rotating Beacon ART-JCDB-01 (L)


Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

LED Heliport Rotating Beacon — High Visibility. Reliable Performance.

Heliport rotating beacon is an aviation lighting device installed at or near a heliport to help pilots identify and locate the landing site, especially during nighttime operations or low-visibility conditions. The Al Rouf ART-JCDB-01 (L) operates at 36 flashing cycles per minute, emits white, green, and yellow light, and features a 60 degree vertical and horizontal beam angle fully compliant with ICAO Annex 14 and FAA AC 150/5345-43 requirements.

Key Features

  • Aviation-grade housing, stainless steel and aviation-grade aluminum alloy painted construction for long-term durability
  • Advanced LED optical system, long lifespan, high efficiency, beam angles compliant
  • Military-standard drive circuitry fully domestically developed, meeting military standards for operational lifespan and temperature tolerance
  • Integrated surge protection device ensures reliable performance in harsh environments
  • Superior thermal management, high-conductivity thermal management technology for superior heat dissipation and extended service life
  • Extreme weather resistance resistant to impact, lightning, UV exposure, rain, snow, typhoons, and hail
  • Wide operating temperature range functions reliably from -40°C to +55°C, ideal for Gulf climate conditions
  • High IP protection IP55 for the electrical box and IP67 for the lighting unit
  • Three emitting colours  white, green, and yellow to meet heliport identification standards
  • Compact and lightweight 421mm x 339mm x 660mm footprint, weighing only 24KG
  • Post-sales support
  • Spare parts available



Technical Specifications

Model  ART-JCDB-01 (L)
Supply Voltage  AC 220V
Power Consumption  < 150W
Ambient Temperature  -40°C to 55°C
Ambient Humidity  ≤95%
Altitude  ≤5500m
IP Protection — Electrical Box  IP55
IP Protection — Lighting Unit  IP67
Lighting Source  LED
Product Size  421mm x 339mm x 660mm
Vertical & Horizontal Beam Angle  60° (both)
Working Mode  Flashing — 36 cycles/minute
Emitting Colors  White, Green, Yellow
Weight  24 KG

 Applications / Industries Served

Civil Airports

Military Airports / Aviation Operations

Offshore Aircraft Platforms

Heliports & Helipads

Ideal for hospitals, urban rooftop helipads, industrial sites, and private heliports requiring ICAO-compliant beacon identification.

Q1: Is the ART-JCDB-01 (L) compliant with ICAO Annex 14?

Yes. The ART-JCDB-01 (L) heliport rotating beacon is fully compliant with ICAO Annex 14 requirements for heliport identification beacons, as well as FAA AC 150/5345-43 and SASO standards.

Q2: What colours does the heliport rotating beacon emit?

The ART-JCDB-01 (L) emits three colours — white, green, and yellow in accordance with international heliport beacon identification standards.

Q3: What is the IP protection rating of the ART-JCDB-01 (L)?

The beacon features dual IP protection: IP55 for the electrical box and IP67 for the lighting unit, ensuring reliable performance in dusty, humid, and wet environments.

Q4: Is this beacon suitable for offshore helipad platforms in the Gulf?

Yes. The ART-JCDB-01 (L) is specifically engineered for harsh marine environments with high corrosion resistance, making it suitable for offshore aircraft platforms and oil and gas facilities across the Gulf region.

Q5: What is the operating temperature range of the ART-JCDB-01 (L)?

The beacon operates reliably across an ambient temperature range of -40°C to +55°C, making it well-suited for the extreme heat conditions common in Saudi Arabia and the Gulf.

Contact Al Rouf LED today for technical specifications, pricing, and availability across Saudi Arabia and the Gulf region.
