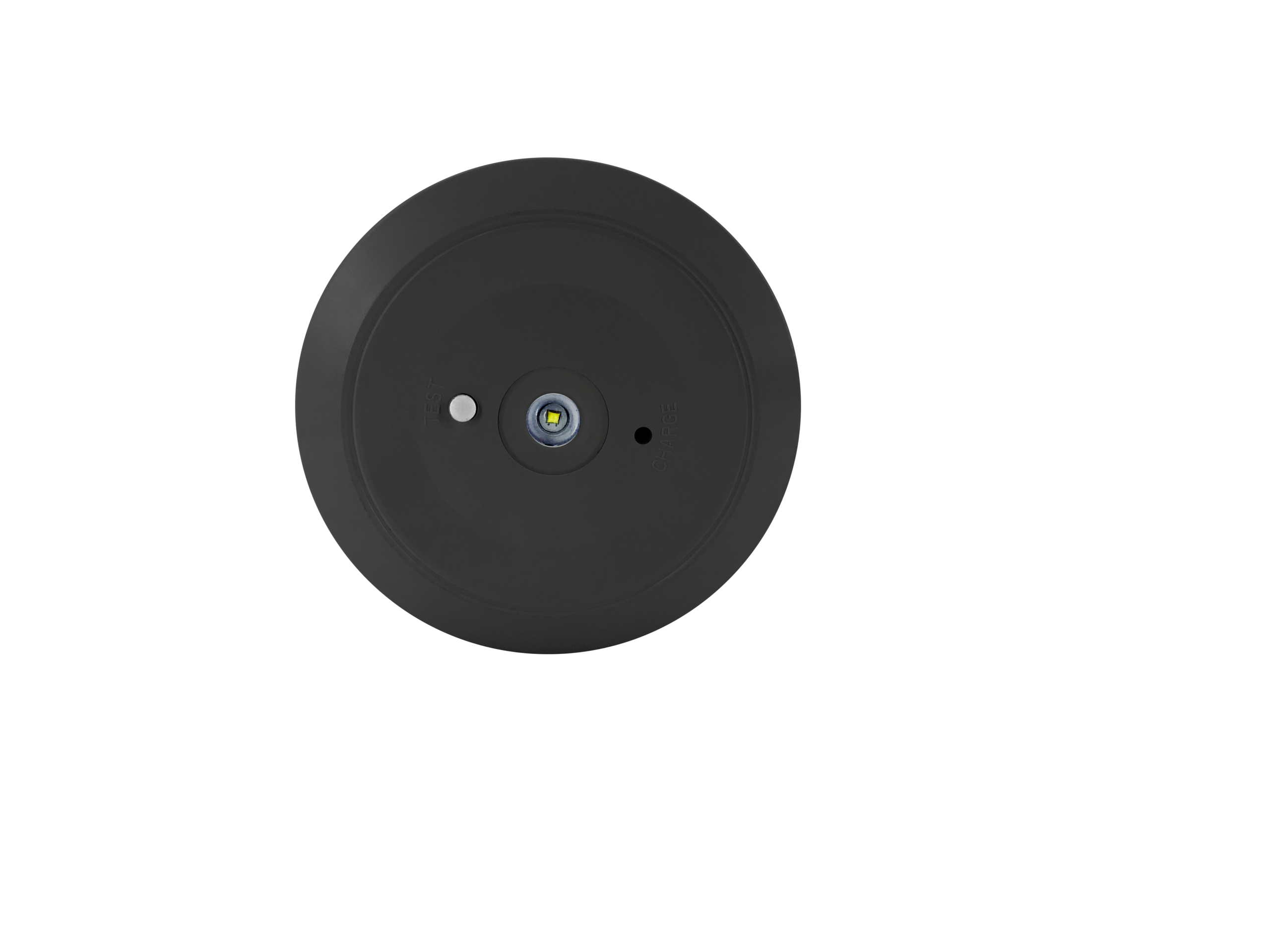

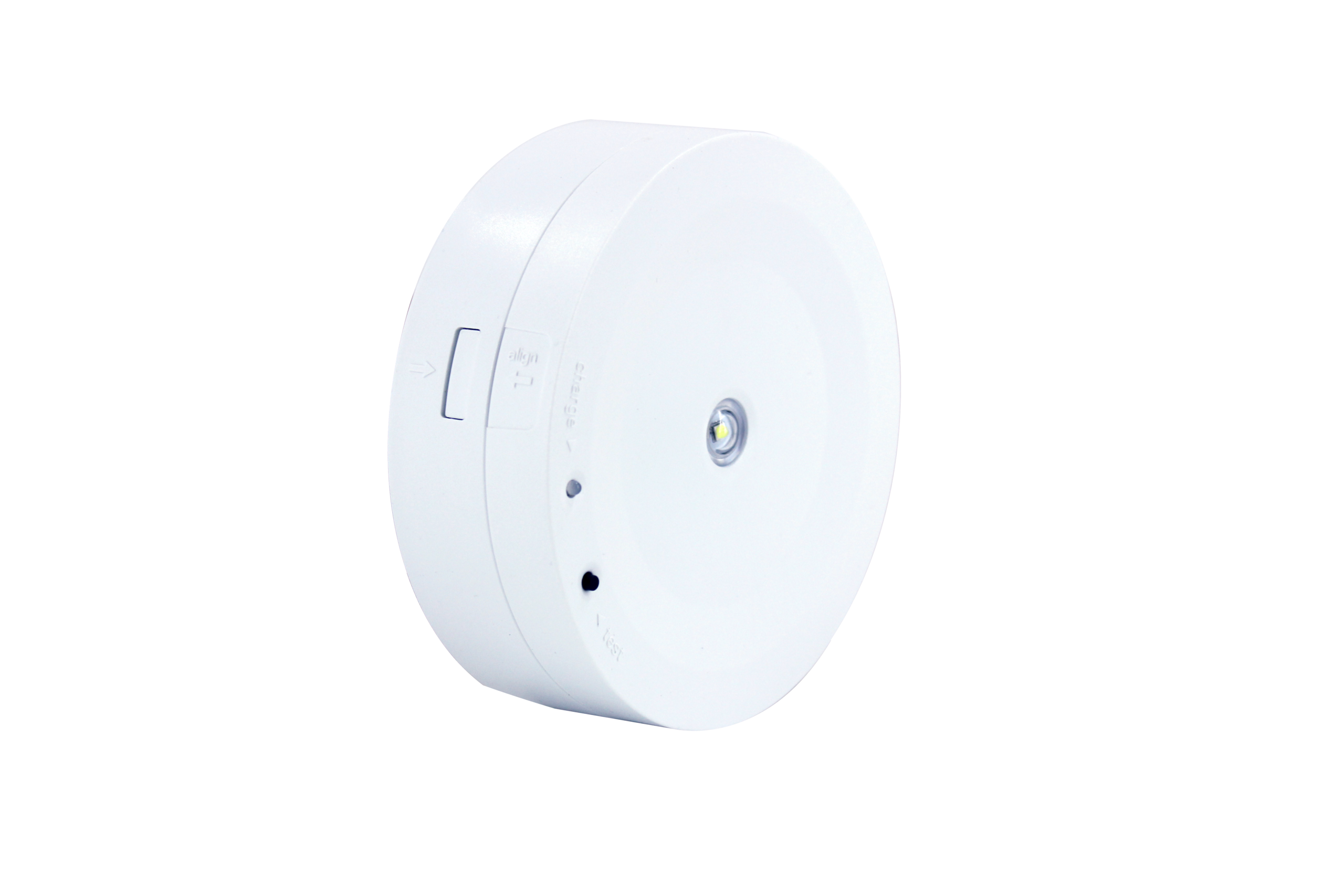

Alrouf’s LED emergency downlight range provides battery-backed emergency illumination with model-specific outputs from 150 to 300 lumens. The range includes automatic testing, lithium or LiFePO4 batteries, and different operating modes and mounting configurations.
Most listed models have a rated emergency duration of 180 minutes. The BY-T1006E1 provides 300 lumens for a rated 150 minutes. Compare the exact model specifications before selection.
LED emergency downlights provide emergency illumination from ceiling positions when the relevant normal lighting supply fails. They can be considered for corridors, circulation areas, offices and other building spaces where their performance meets the approved lighting design.
The range includes compact luminaires with separate battery/control assemblies and models with different housing arrangements. Mounting requirements, battery chemistry, protection ratings and emergency output vary across the range.
Select equipment using emergency-mode photometric data, the proposed mounting position and the installation environment.
During normal supply conditions, the charging system maintains the battery. In non-maintained operation, the emergency light source remains off until emergency operation is required.
When the relevant supply fails, the battery powers the emergency light source. Models supporting maintained operation can also illuminate during normal conditions according to their wiring and control arrangement.
Automatic testing supports equipment checks, but maintenance staff must still review fault indications, investigate problems and keep the required records.
For more information, read our self-test and manual-test emergency lighting guide.
| Model | Input power | Emergency power | Emergency output | Rated duration | IP rating |
|---|---|---|---|---|---|
| BY-T1006E1 | 6W | 3W | 300 lm | 150 min | IP20 |
| BY-Z1103S | 3.5W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z1105S | 5.5W | 2.5W | 250 lm | 180 min | IP20 |
| BY-Z1003S | 3.5W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z1005S | 5.5W | 2.5W | 250 lm | 180 min | IP20 |
| BY-Z1603S | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z1803S | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z1703S | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z1706S | 6W | 2.5W | 250 lm | 180 min | IP20 |
| BY-Z-NI-2003S | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-Z-NI-2005S | 5W | 3W | 250 lm | 180 min | IP20 |
| BY-T1703E1 | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-T1703E2 | 3W | 1.5W | 150 lm | 180 min | IP20 |
| BY-T1706E1 | 6W | 2.5W | 250 lm | 180 min | IP20 |
| BY-T1706E2 | 6W | 2.5W | 250 lm | 180 min | IP20 |
| BY-T1403S | 3W | 1.5W | 150 lm | 180 min | IP54 |
| BY-T1405S | 5W | 2.5W | 250 lm | 180 min | IP54 |
| BY-T1003E | 3W | 1.5W | 150 lm | 180 min | Confirm before ordering* |
*The BY-T1003E brochure page shows conflicting IP information: IP54 in the header and IP20 in the specification table. Request written confirmation for the supplied model.
| Models | Battery |
|---|---|
| BY-T1006E1 | Lithium 3.7V, 2200mAh |
| BY-Z1103S, BY-Z1003S, BY-Z1603S, BY-Z-NI-2003S, BY-T1703E2, BY-T1403S | LiFePO4 3.2V, 1500mAh |
| BY-Z1105S, BY-Z1005S, BY-Z-NI-2005S, BY-T1706E2, BY-T1405S | LiFePO4 3.2V, 3000mAh |
| BY-Z1803S, BY-Z1703S, BY-T1703E1, BY-T1003E | Lithium 3.7V, 1500mAh |
| BY-Z1706S, BY-T1706E1 | Lithium 3.7V, 3000mAh |
| Specification | Details |
|---|---|
| Input voltage | AC 220–240V |
| Frequency | 50/60Hz |
| Light source | SMD 3535 LEDs; quantity varies by model |
| Recharge time | 24 hours |
| Operating temperature | 0°C to 40°C |
| Automatic testing | Yes, as listed in the brochure tables |
| Maintained/non-maintained models | BY-Z1103S, BY-Z1105S, BY-Z1003S and BY-Z1005S |
| Other listed models | Non-maintained |
These emergency downlights may be considered for:
For locations exposed to moisture or dust, verify the exact protection rating and installation conditions. Do not substitute an IP20 model where a higher protection level is specified.
Start with the required emergency duration and output. Then assess:
Higher output alone does not determine fixture spacing. Use the relevant emergency photometric data and lighting calculations.
Compare alternative formats in our LED emergency ceiling light range.
Before cutting the ceiling, request the exact cut-out dimensions, installation clearances and fixing instructions. Overall product diameter is not automatically the required opening size.
For Saudi projects, coordinate product selection with the approved drawings and consultant specification. Request current technical documents and applicable conformity evidence for the proposed model.
No. BY-T1006E1 is rated for 150 minutes. The other models listed in the comparison table are rated for 180 minutes.
The brochure tables list Auto Test as “Yes” for all listed models. Confirm the test sequence and fault-indication instructions for the supplied configuration.
No. BY-Z1103S, BY-Z1105S, BY-Z1003S and BY-Z1005S support maintained/non-maintained operation. The other listed models are non-maintained.
BY-T1403S and BY-T1405S are listed as IP54. The BY-T1003E rating requires clarification because its brochure page contains conflicting information.
Confirm it from the selected model’s installation drawing. Do not use overall housing dimensions as cut-out dimensions without verification.
Send Alrouf your preferred model, quantity, project location, emergency duration, operating mode and mounting requirements.
Contact Alrouf for technical documents and a quotation, or explore the complete emergency lighting range.
For broader selection guidance, read our emergency lighting guide.
