Al Rouf LED

Twin Head Emergency Light


Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

Product Description

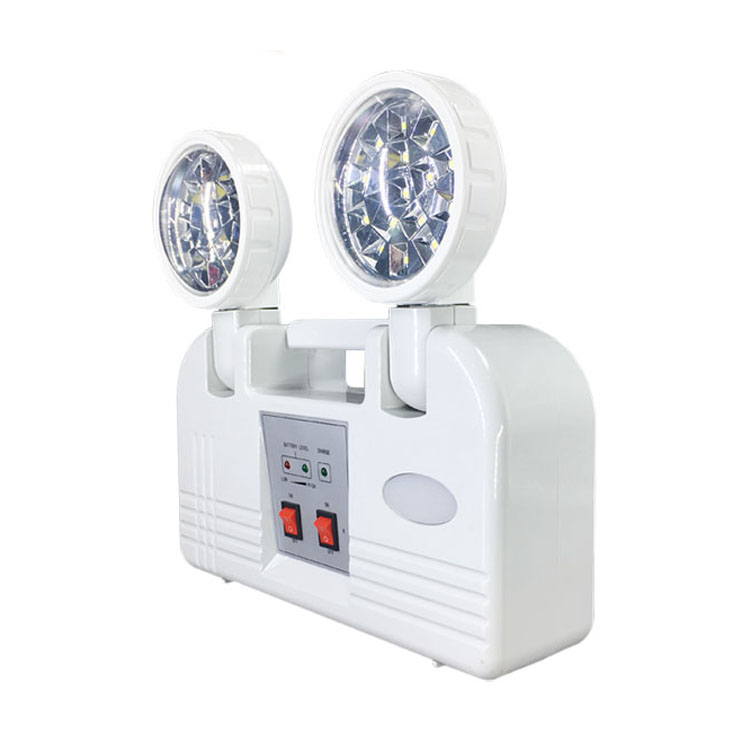

The Twin Head Emergency Light is a reliable LED emergency light designed for industrial and commercial emergency lighting applications. These emergency lights feature two adjustable LED heads that provide powerful directional illumination during power failures in warehouses, factories, parking areas, and large industrial facilities.

As an advanced emergency lighting system, Model BY-Z2035C operates in non-maintained mode and activates automatically during power outages to improve evacuation safety and operational visibility. Each adjustable head can be directed toward exits, stairways, machinery zones, and emergency pathways, making it ideal for industrial emergency lighting and commercial safety applications.

Engineering Performance and Technology

  • Model: BY-Z2035C
  • Main technical specifications:
  • Input Voltage: AC 220–240V, 50/60Hz, 30mA
  • Light Source: LED SMD 2835 (32 pcs)
  • Input Power: 2.5W
  • Emergency Duration: 3 Hours
  • Emergency Lumen Output: 180 lm
  • Battery Type: Sealed Lead-Acid 4.0V 2500mAh
  • Recharge Time: 24 Hours
  • IP Rating: IP20
  • Operating Temperature: 0°C to 40°C
  • Auto Test: No
  • Certifications: CE & CB-TÜV

Dual adjustable heads allow directing light precisely toward evacuation routes or open-area zones.

Why Choose Twin Head Emergency Lights

  • Wide-area illumination for open industrial spaces
  • Adjustable heads for targeted lighting
  • Reliable lead-acid battery backup
  • Suitable for high ceilings and warehouses
  • Compatible with industrial emergency lighting layouts

Typical Applications

  • Warehouses
  • Factories and production lines
  • Industrial workshops
  • Parking garages
  • Large storage areas

FIXING TYPE

  • CEILING RECESSED
  • CEILING SURFACED
  • SEMI RECESSED
  • HANGING WITH CHAIN

LEGEND OPTINS

  • EMERGENCY (ENGLISH & ARABIC)
  • EXIT (ENGLISH & ARABIC)
  • RUNNING DIRECTION WISE
  • CUSTOM MADE

Compliance and Project Suitability

This twin head emergency light is suitable for indoor industrial and commercial buildings in Saudi Arabia requiring wide-area emergency illumination during power outages.

What is the emergency duration?
About 3 hours.

Can the two heads be adjusted separately?
Yes, each head can be aimed independently.

What battery type is used?
Sealed lead-acid battery 4.0V 2500mAh.

Where can this light be installed?
Indoor industrial areas such as warehouses and factories.

Explore more certified emergency lighting solutions from Al Rouf LED, designed for commercial and industrial safety applications. For technical support, product recommendations, or project quotations, contact our team to help you select the right emergency lighting system for your project.
