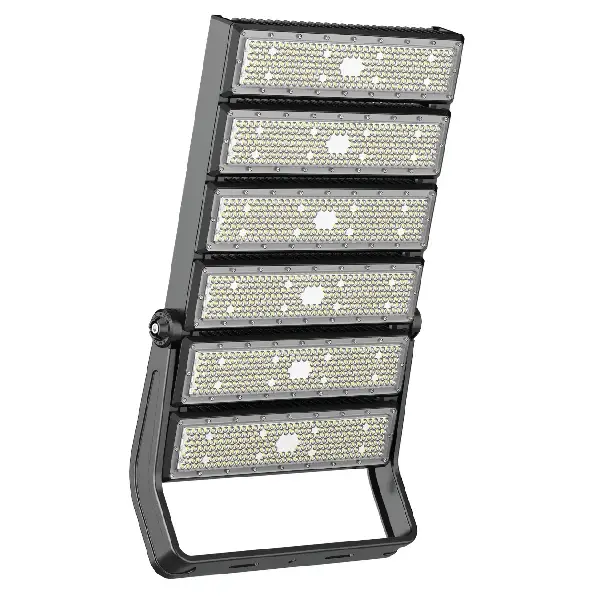

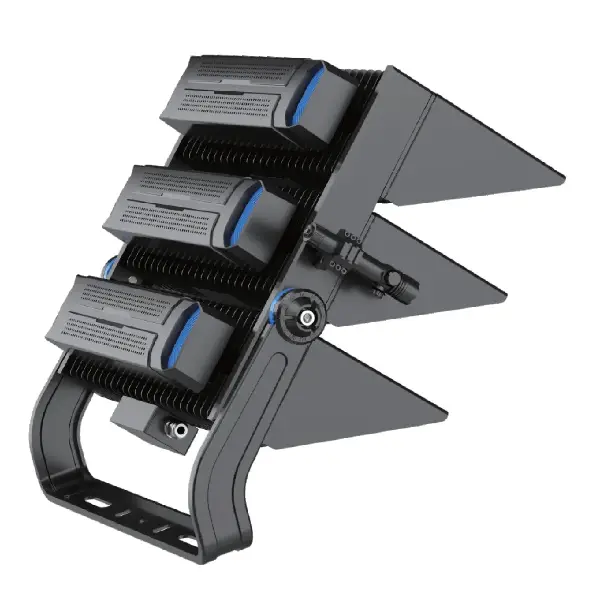

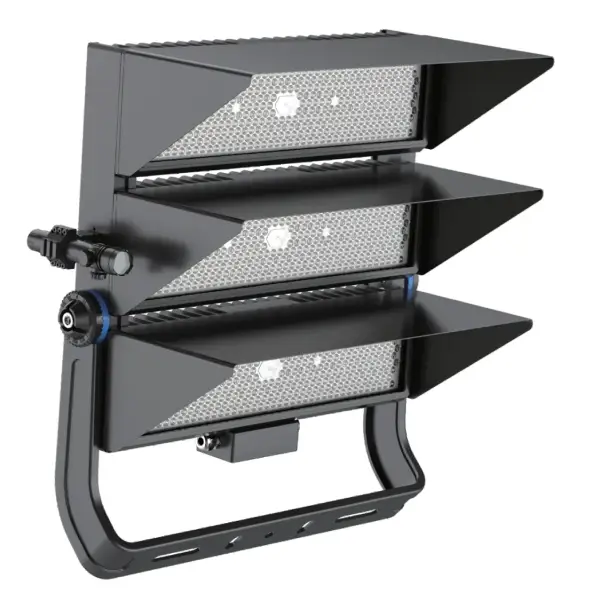

Alrouf Modular Flood Light

Warning Sign
Click the relevant product code in the table above to access the Flood Light (IES file) files and the installation instructions for your luminaire.

Product Features

  • Heavy-duty built for demanding applications.
  • IP66/IP67 is rated for wet environments and all weather conditions.
  • 3G/5G vibration rated.
  • 15 types of optic lenses at choice.
  • Choice of mount accessories accommodates wall mount, surface mount, or pole mount.

Performance

  • Philips Lumileds
  • 75W~450W
  • 4500~5500K (2500~5500K optional)
  • ≥70
  • L70>100,000hours
  • 100-277 VAC (347/480 VAC Optional) Dimming Optional
  • 0.95 min
  • IP66 / IP67
  • IK10
  • 60x100° / 90x145° / 70x130° / 80x145° / 80x150° /
  • 80x150° / 80x125° / 25° / 30° / 60° / 90° / 110° / 140°
  • Operating Temperature:-45°C to +50°C (-49°F to 122°F)
  • Storing Temperature:-45°C to +80°C (-49°F to 176°F)
  • 137lm/W~154lm/W
  • 3G / 5G Vibration
alrouf modular flood lights dimensions
Check out the instructions in which we explain what can be read from these graphs.
Manual
alrouf modular flood lights dimensions
alrouf modular flood lights dimensions
alrouf modular flood lights dimensions
Aviation Aircraft Warning Single Light
Alrouf Low Intensity Aircraft Warning Light
Aviation Aircraft Warning Double Solar

Universal Bracket

  • Rotate the bracket to the desired angle and tighten the screw to lock it.
  • Bolt the universal mounting bracket to the field mounting point. Bolt the centre point before the two side points.
  • Tighten the bolts to wrench tight.
  • Wiring. (Connect supply wires to luminaire wire leads per the wiring diagram using methods that comply with all applicable codes.)
SKYWING VIII_Plan A_150lm
Model No. ISL-QCD-H250W ISL-QCD-H500W ISL-QCD-H750W ISL-QCD-H1000W ISL-QCD-H1250W
Light Source 440*PCT2835/126*SMD3737 880*PCT2835/252*SMD3737 1320*PCT2835/378*SMD3737 1760*PCT2835/504*SMD3737 2200*PCT2835/563*SMD3737
LED Brand Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM
Driver Brand MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN
Rated Power (W) 240W 480W 720W 960W 1200W
Input Voltage (V) 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz
Output Voltage (V) 48 48 48 48 48
Power Factor >0.95 >0.95 >0.95 >0.95 >0.95
THD <10 <10 <10 <10 <10
Luminous Flux (lm) 36,000 ±5% 72,000 ±5% 108,000 ±5% 144,000 ±5% 180,000 ±5%
CCT (K) 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700
CRI (Ra) >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90
Beam Angle 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25°
IP Class IP66 IP66 IP66 IP66 IP66
IK Class IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10
Outer Carton (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35



SKYWING VIII_Plan A_170lm
Model No. ISL-QCD-H250W ISL-QCD-H500W ISL-QCD-H750W ISL-QCD-H1000W ISL-QCD-H1250W
Light Source 440*SMD3030/126*SMD3737 880*SMD3030/252*SMD3737 1320*SMD3030/378*SMD3737 1760*SMD3030/504*SMD3737 2200*SMD3030/630*SMD3737
LED Brand Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM
Driver Brand MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN
Rated Power (W) 240W 480W 720W 960W 1200W
Input Voltage (V) 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz
Output Voltage (V) 48 48 48 48 48
Power Factor >0.95 >0.95 >0.95 >0.95 >0.95
THD <10 <10 <10 <10 <10
Luminous Flux (lm) 40,800 ±5% 81,600 ±5% 122,400 ±5% 163,200 ±5% 204,000 ±5%
CCT (K) 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700
CRI (Ra) >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90
Beam Angle 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25°
IP Class IP66 IP66 IP66 IP66 IP66
IK Class IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10
Outer Carton (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35



SKYWING VIII_Plan B_150lm
Model No. ISL-QCD-H300W ISL-QCD-H600W ISL-QCD-H900W ISL-QCD-H1200W ISL-QCD-H1500W
Light Source 440*SMD3030/126*SMD3737 880*SMD3030/252*SMD3737 1320*SMD3030/378*SMD3737 1760*SMD3030/504*SMD3737 2200*SMD3030/630*SMD3737
LED Brand Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM Lumileds/OSRAM
Driver Brand MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN MW/SOSEN
Rated Power (W) 300W 600W 900W 1200W 1500W
Input Voltage (V) 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz 100-305Vac 50/60Hz
Output Voltage (V) 48 48 48 48 48
Power Factor >0.95 >0.95 >0.95 >0.95 >0.95
THD <10 <10 <10 <10 <10
Luminous Flux (lm) 45,000 ±5% 90,000 ±5% 135,000 ±5% 180,000 ±5% 225,000 ±5%
CCT (K) 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700 3000/4000/5000/5700
CRI (Ra) >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90 >70/>80/>90
Beam Angle 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25° 10°/25°/45°/60°/90°/65°*25°
IP Class IP66 IP66 IP66 IP66 IP66
IK Class IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10 IK08/IK10
Outer Carton (mm) 630*330*230 630*520*230 630*680*230 630*840*230 630*1000*230
Net Weight (kgs) 7 14 20 26 32
Gross Weight (kgs) 7.5 15 22 28 35
