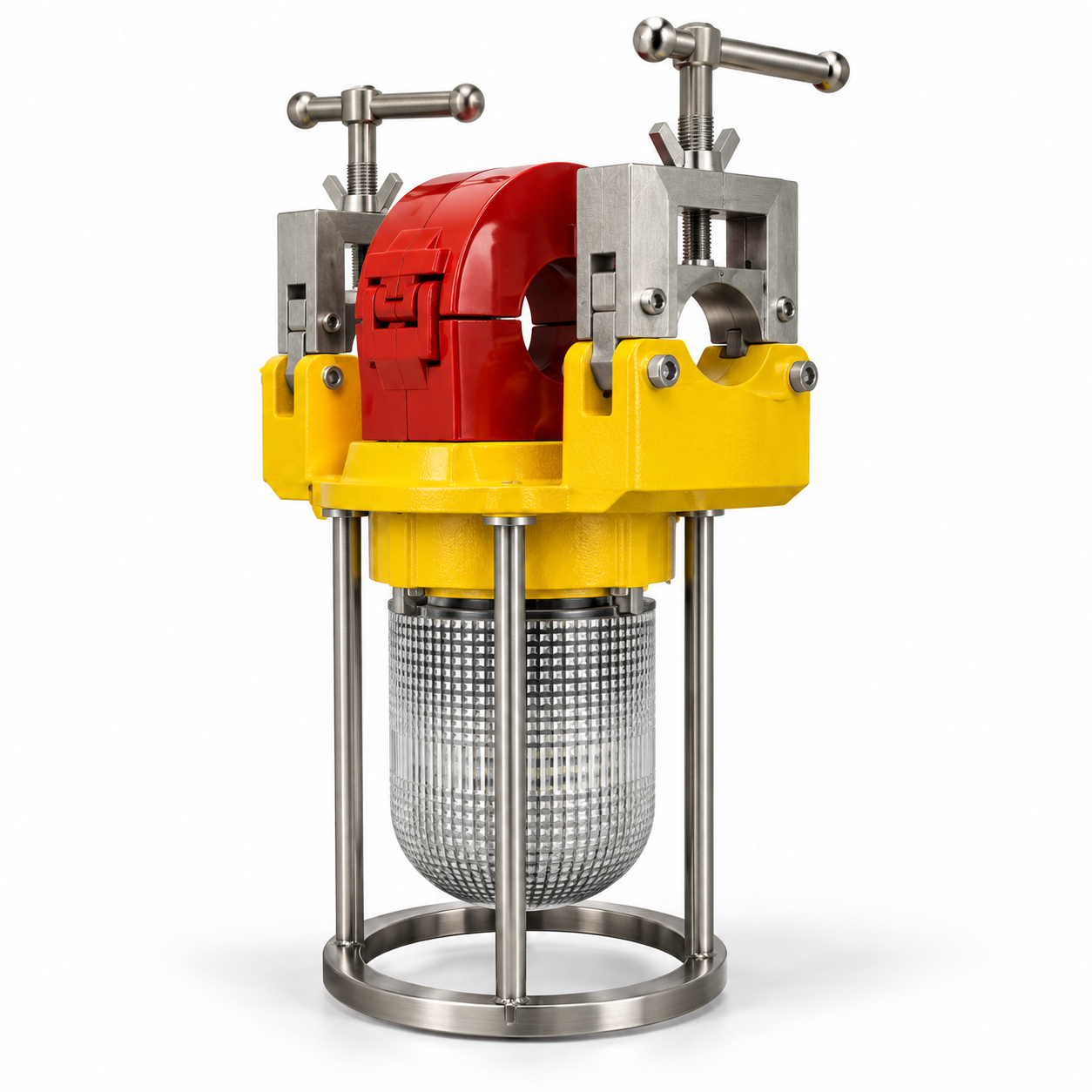

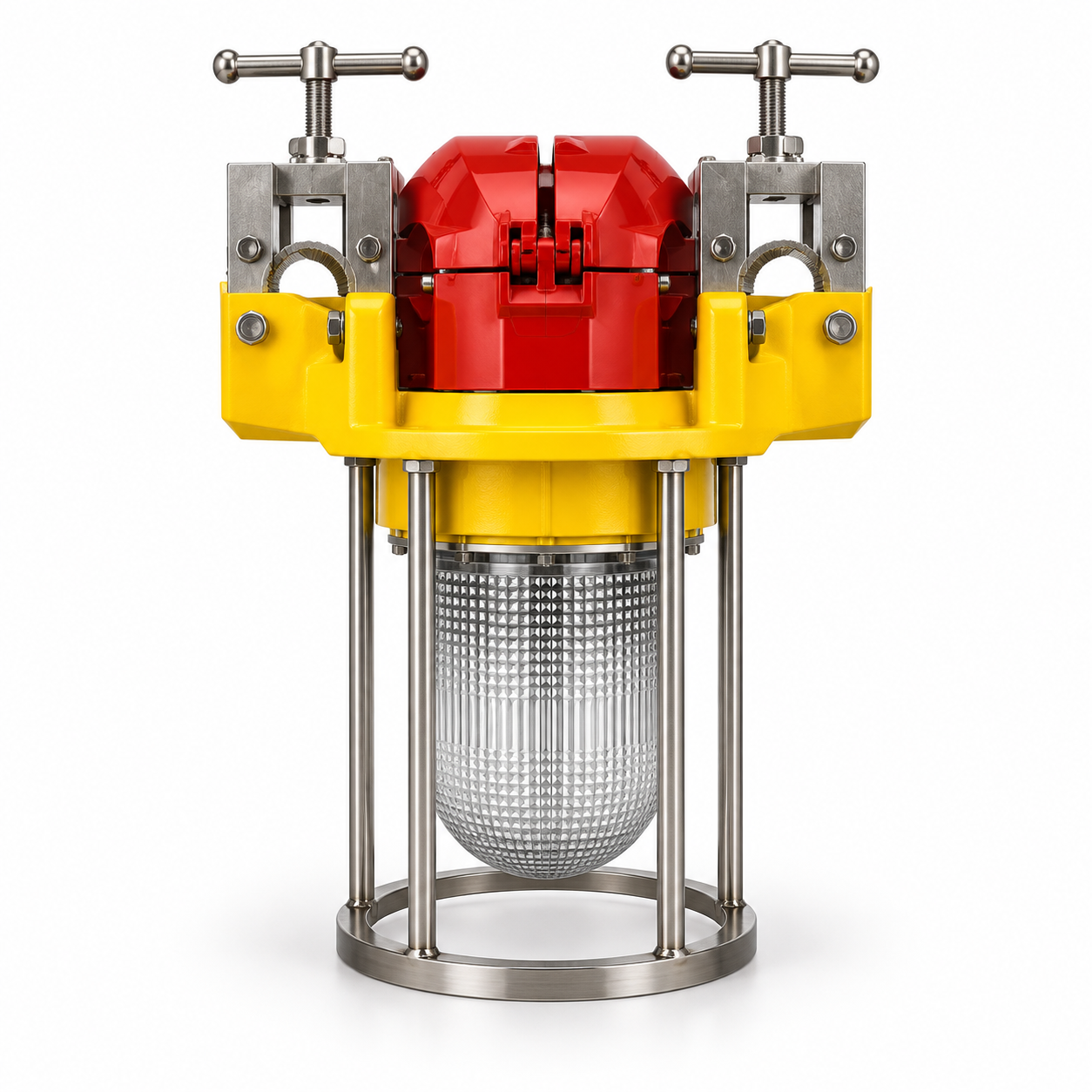

Alrouf AR-CM-001 is a conductor-mounted LED obstruction light for overhead high-voltage power lines. It harvests energy through electromagnetic induction and provides red warning illumination with 360° horizontal coverage. Its integrated photocell controls operation according to ambient light, while the IP66-rated enclosure protects the lighting assembly.
The AR-CM-001 uses electromagnetic induction to power its LED assembly. Current flowing through the overhead conductor creates a surrounding magnetic field. The light’s induction assembly converts energy from this field into electrical power.
An integrated photocell controls day and night operation. Compatibility must account for the line’s operating current as well as conductor diameter and voltage.
Learn more about how conductor marking lights work on overhead power lines.
The catalogue identifies applications on overhead power transmission lines, including locations associated with:
The conductor-mounted design places the warning light directly on the overhead wire to help identify its position to aircraft.
| Specification | Catalogue information |
|---|---|
| Model | AR-CM-001 |
| Light source | LED |
| Light colour | Red |
| Obstruction light classification | Low intensity, Type B |
| Horizontal beam | 360° |
| Vertical beam | 10° |
| Compatible conductor diameter | 15–40 mm |
| Line voltage suitability | Up to 500 kV |
| Operating line frequency | 50/60 Hz |
| Power consumption | Less than 5 W |
| Photocell activation | 50 lux |
| Ingress protection | IP66 |
| Frame and body materials | Stainless steel, aluminium alloy and polycarbonate |
| Lens material | Polycarbonate |
| Weight | 4.5 kg |
| Listed service life | Up to 100,000 hours |
| Listed warranty | Five years |

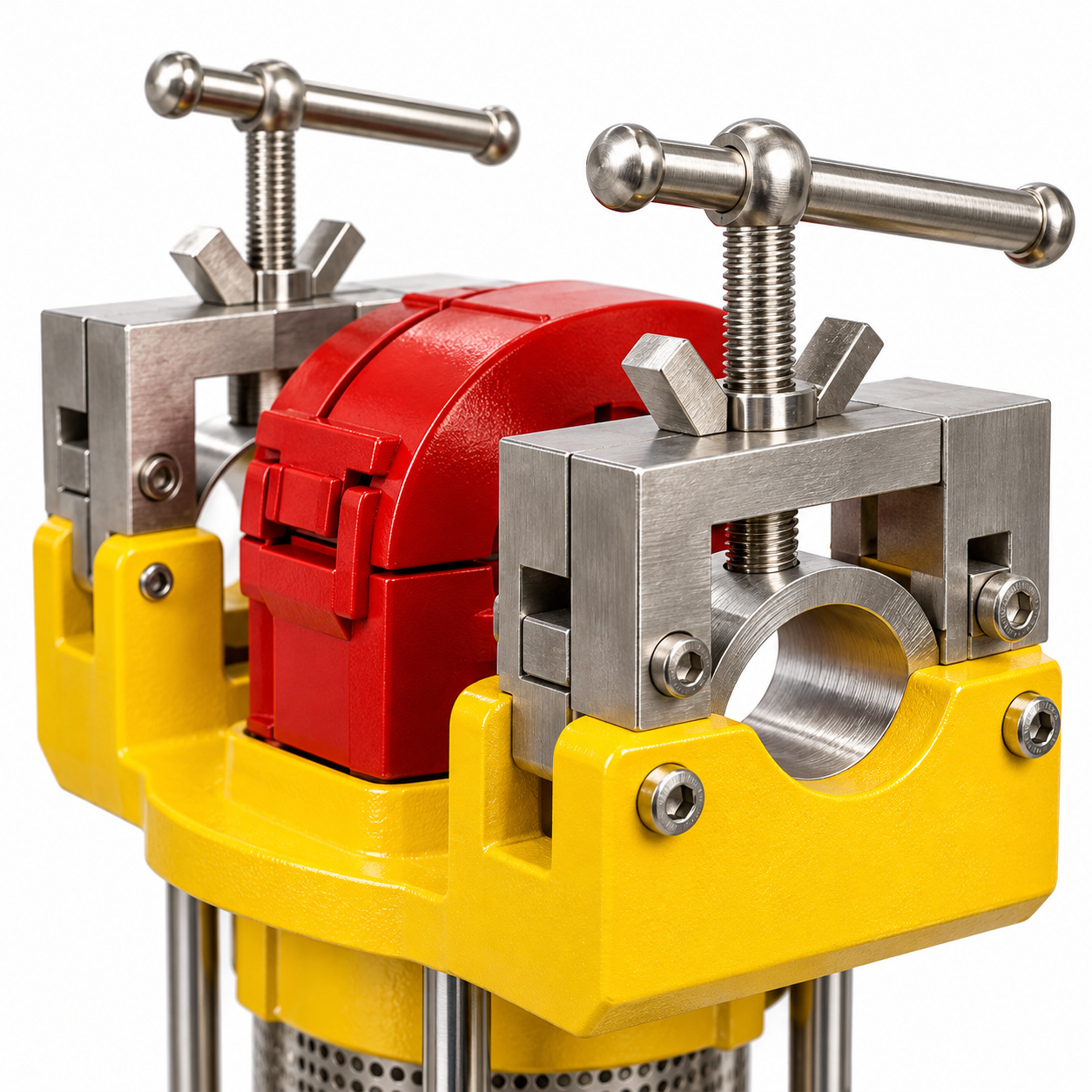

The light is designed for conductor diameters from 15 mm to 40 mm. The catalogue describes mounting features including self-locking screws, anti-drop provisions and an anti-rotation nut.
Confirm the conductor dimensions and electrical operating conditions when specifying the product.
For a selection checklist, read how to choose an aviation obstruction light for overhead power lines.
The catalogue states conformity with ICAO Annex 14, Volume I, Chapter 6, for low-intensity Type B obstruction lighting. It also references FAA AC 150/5345-43 and FAA Type L-810.
These references describe the catalogue’s stated compliance. Supporting documents should be reviewed against the requirements of the project.
It harvests energy by electromagnetic induction from the current flowing through the conductor.
The catalogue specifies conductor diameters of 15–40 mm.
The integrated photocell controls operation according to ambient light. The listed activation threshold is 50 lux.
The described power source depends on current flowing through the conductor. The catalogue does not specify a backup power source or operation during a line outage.
The catalogue lists a five-year warranty and a service life of up to 100,000 hours.
Contact Alrouf with the required quantity, conductor diameter, line voltage, operating current and delivery location.
For help preparing your enquiry, see our obstruction light price and quotation guide for Saudi Arabia.
Contact Alrouf about the AR-CM-001 for your overhead power line project. Include your technical requirements, required quantity and delivery location to support product selection and quotation.
